Lithium solar battery 48v 300ah lithium iron battery for energy storage system

这里可以自定义设置
Lithium solar battery 48v 300ah lithium iron battery for energy storage system
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Model: BLP48V300Ah

MOQ: 5pcs

Payment: T/T , Western Union , Paypal ,

Delivery time: 10days ~ 15days

Start Port: Shenzhen

Certification: CE , ROHS , MSDS , UN38.3


Add success, do you want to check your shopping cart?

暂无分享
该产品后台详情无内容

Product Parameters

That guarantee us to supply most competitive cells , battery pack and BMS solutions with advanced lithium technology .

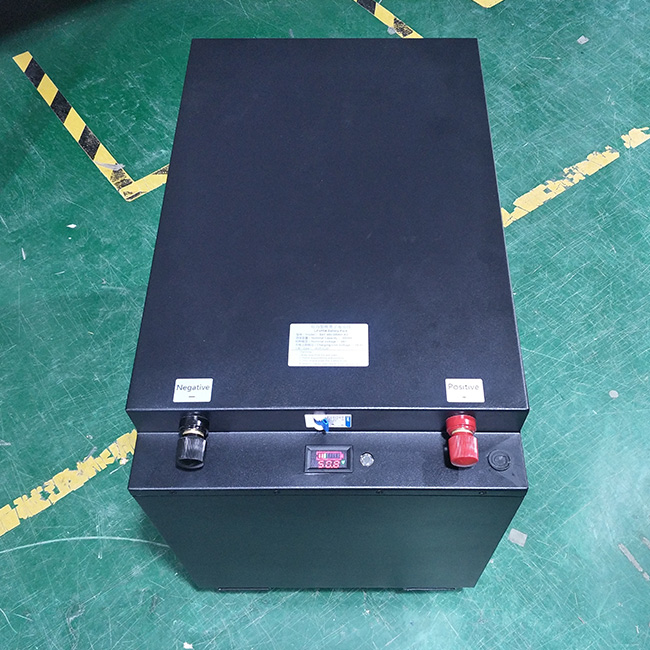

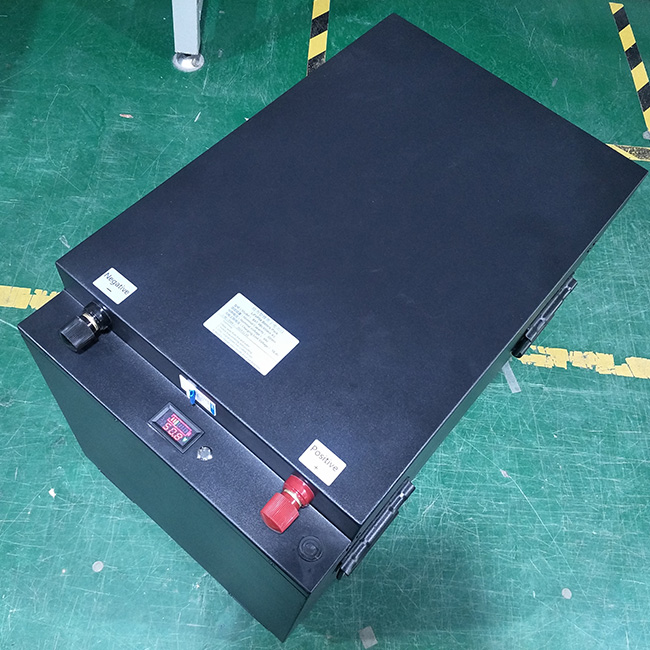

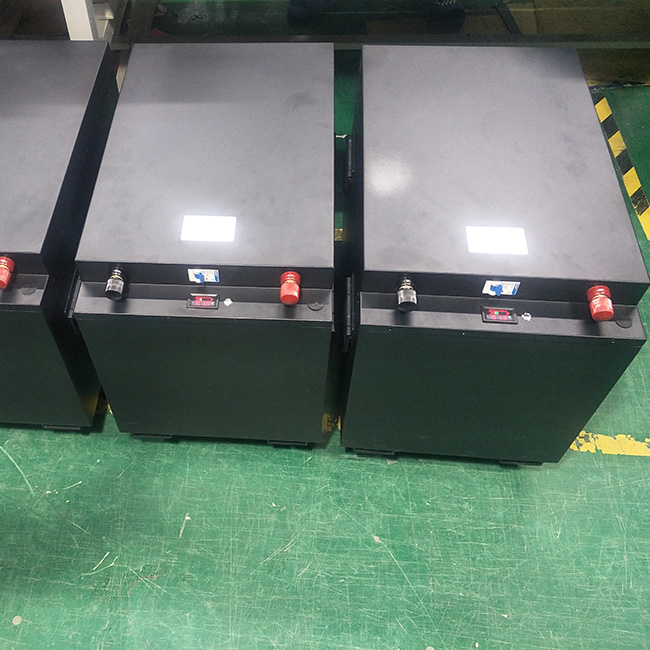

48v 300ah lithium battery pack

2. Technical Data

Rated Voltage

48V

Rated Capacity

300Ah

Chemistry

Lifepo4 battery cell 3.2V

Weight

149.8kg

Size

1000*650*460 orcustom

Working Temperature

Charge

-20°C ~ 45°C , 65±20%RH;

Discharge

-20°C ~65°C , 65±20%RH

Storage Temperature

Less than 1 month

-20°C ~ 45°C ,  45-75% R.H.

less than 3 months

-20°C ~ 35°C, 45-75% R.H.

Standard Discharge

Constant Current 0.2C/End Voltage 2.65V cell

Cycle Life

>2000 times (80% of initial capacity at 0.2C rate)

Retention of charge(store in one month)

above 95%

Charge & Discharge

Way of charge

CC/CV(Constant Current / Constant Voltage)

Standard Charge Current

≤ 30~50A or custom

Over Charge cut-off voltage

54.6±0.025V(optional)

Continuous Discharge Current

 ≤ 60A or custom

Dischargecut-off voltage

39.0 ±0.025V(optional)

Protection Function

Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Teperature, Balance

Product Description

Vglory battery factory producing high quality lithium battery by assembled with high quality A grade battery cell. which are good replacement of lead-acid batteries  and good compatible in all respects with those of lead battery. the charging system can be kept the same and no additional accessories are required to perform the replacement.


Our Lithium battery more safe and reliable than the lead acid one.It does not explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat. Environment-friendly: which is more ompacted size and super light weight .
The Stable BMS system with short-circuit protection , over-charge protection, over-discharge protection and over-current protection functions.

这里可以自定义设置

Product Characteristics

Place of Origin

 Guangdong, China

Brand Name

 Vglory or OEM

Model Number

 BLP48V300AH

Capacity

 48v300ah

Battery type

 solar power battery solar power battery ,e-motorcycle, e-tricycle/rickshaw,e-golf cart,

Material

 Lifepo4 cell

Warranty

 2 Year

Charge Current

 0.2C

Discharge Current

 0.5C

Charge Cut-off Voltage

 54.6v

Discharge Cut-off Voltage

 39.6v

Product Details

We have professional cell engineer and mechanical engineer who can design the ideal battery pack according our customer’s

mechanical and electric requirement balanced with suitable cost structure

这里可以自定义设置

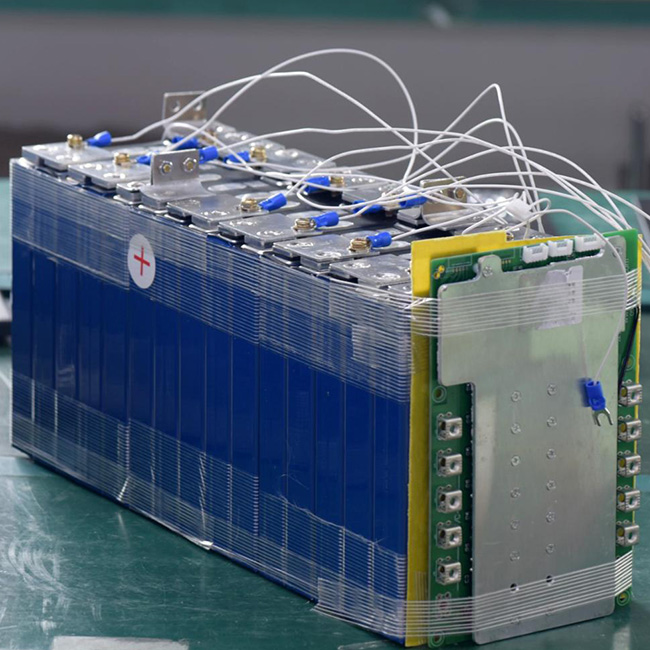

Our Strict quality testing for battery pack processing

Battery cells capacity sorting

Automatic cell grading sorting ensure the precision of cell balance as ensure the best capacity and quality of battery pack

Battery cells IR & voltage testing

Intelligent testing : grading the voltage , resistance by once Computer calculation , Automatic sorting , High precision ,High consistency

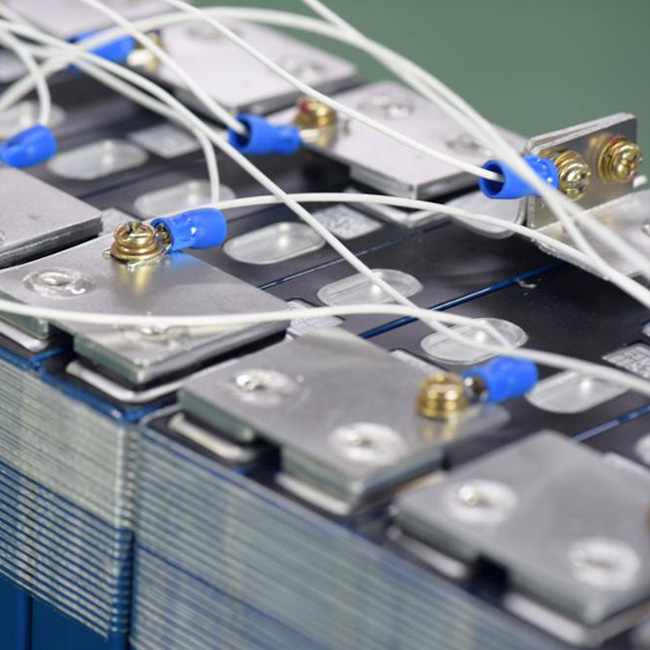

Automatic Welding machine

Which can avoid insufficient welding as ensure the high quality battery pack assembling . which can improve production efficiency mostly

Spot Automatic welding

More stable solder joints , with microcomputer control

Aging Testing

Using automatic test equipment , Comprehensive testing with automatic professional test machine , which Improve the battery’s cycle life and battery stability

Automatic sticker machine

The processing of assembly the barcode of batteries can record the capacity , voltage , power , production time , and production batch for easier trace in the future

Package design

We design the strong package(carton & wooden case ) ensuring the safety of shipments during delivery by air or by sea per request

Component Advantage

High quality Standard of Vglory Battery

Advantage of our company

1: Quick response : quick reply within 24 hours
2: Good quality : We will arrange production of your order as soon as possible, Provide with best quality lithium battery pack !
3: Fast delivery : once order confirmed, we will make production arrangement and get ready asap! For sample order, we will ship in around 7 days, for bulk order , we can get shipment ready approx. 15 days
4: QC checking: ensure 100% quality testing passed before shipment.
5: Professional Logistic team: We have professional logistic team which are rich experiences in sourcing the best channel & handling shipments for clients , arrange shipment by air or by sea per requirement.
6: Tracking Shipments

We will track the shipping status timely ensure our buyers can receive goods in time and safely
7: Very lower factory lower price , super high quality lithium battery pack!
8: provide 3 years warranty as ensure the best quality of battery pack!

Product Application

Energy Storage Systems  : (solar and wind power system , Solar storage battery ,

energy storage system , City Grid (On / Off) , Industrial , Community and Home
