Professional Manufacturer of One Stop Solutions Provider for all kind of lithium battery 10 years more .
Model: BLP12V200Ah
MOQ: 5pcs
Payment: T/T, Western Union, Paypal
Delivery time: 10days ~ 15days
Start Port: Shenzhen
Certification: CE , ROHS , MSDS , UN38.3

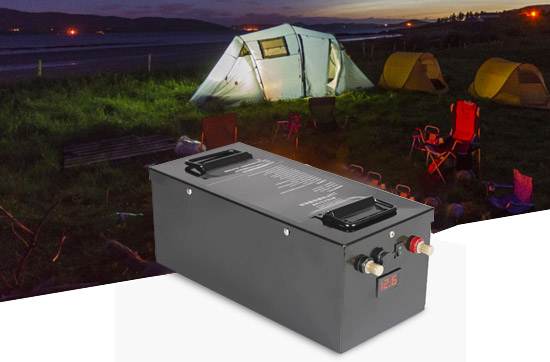

12v 200ah LiFePO4 battery Deep Cycle | ||
Weight | 12.8kg | |
Size | 523*238*218mm or customized per requirement | |
Working Temperature | Charge | -20°C ~ 45°C, 65±20%RH; |
Discharge | -20°C ~65°C, 65±20%RH | |
Storage Temperature | Less than 1 month | -20°C ~ 45°C |
less than 3 months | -20°C ~ 35°C | |
Retention of charge(store in one month) | Above 95% | |
Technical Data | ||
Rated Voltage | 12.8V | |
Rated Capacity | 200Ah | |
Charge & Discharge | Way of charge | CC/CV(Constant Current / Constant Voltage) |
Standard Charge Current | 20A~40A or custom per requirement | |
Max Charge Current | 50A | |
Over Charge cut-off voltage | 14.6v±0.025V(optional) | |
Continuous Discharge Current | ≤ 50A or custom | |
Discharge cut-off voltage | 10v ±0.025V(optional) | |
Peak Discharge Current | ≤ 100A or customized | |
Cell Over Charge Protection Voltage | 3.65v ±0.025V(optional) | |
Cell Over discharge Protection Voltage | 2.5v ±0.025V(optional) | |
Product Description
Vglory battery manufacturer offers high grade lithium battery assembled with high quality A grade cell . which are good replacement of lead-acid batteries and good compatible in all respects with those of lead battery. the charging system can be kept the same and no additional accessories are required to perform the replacement .
Automatic testing by advanced equipment for processing of battery packs before delivery; Our skilled and experienced QC staff for battery quality test and appearance inspections .With advantages like : the high reliability, lower cost , long lifespan and no environment pollutions etc
Product Characteristics
Place of Origin | Guangdong, China |
Brand Name | Vglory or OEM |
Model Number | BLP12V200AH |
Capacity | 12v200ah |
Battery type | best battery for solar power |
Product name | lithium solar batteries |
Material | Li-Ion cell |
Warranty | 2 Year |
Charge Current | 0.2C |
Discharge Current | 0.5C |
Charge Cut-off Voltage | 14.6v |
Discharge Cut-off Voltage | 10.0v |
Environment-friendly
Clean and Green energy poses no pollution on our environment. without any hazardous and noxious substances.
Compacted size and super light weight
Lighter weight, small size and high power performance, with the best power-to-weight radio: 1/3 of lead acid battery weight
Wide temperature range
It can run well under different temperature environment conditions
High energy capacity density
Energy density per volume are more higher than lead acid battery
Long life-cycles
Rechargeable can be circularly used, can up to 2000 times recycles, 8 times of Lead-acid battery.
Low internal resistance
Which ensure the best performance of lithium battery pack
No memory effect
No memory effects and highly efficient charging characteristic, can be charged and discharged any time
PCM & BMS Protection
PCB and or BMS built inside to protect the battery all time.
Vglory battery factory have been in this field for many years which is established in year 2010 and have rich experiences in R&D
