Model: BLP12V300Ah
MOQ: 5pcs
Payment: T/T , Western Union , Paypal
Delivery time: 10days ~ 15days
Start Port: Shenzhen
Certification: CE , ROHS , MSDS , UN38.3

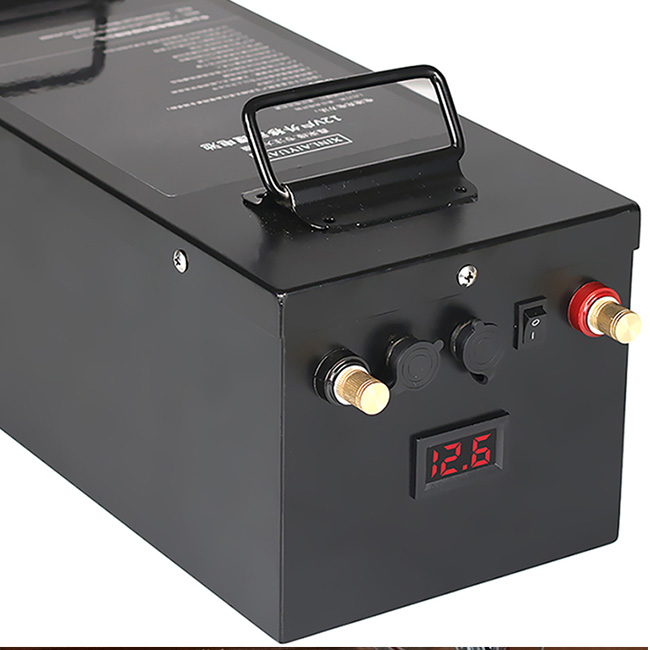

12V 300Ah LiFePO4 batteryBasic characteristics | ||
Weight | 36.9kg | |
Size | 380*380*290mm orcustom | |
Working Temperature | Charge | -20°C~ 45°C , 65±20%RH; |
Discharge | -20°C ~65°C , 65±20%RH | |
Storage Temperature | Less than 1 month | -20°C~ 45°C |
less than 3 months | -20°C~ 35°C | |
Retention of charge(store in one month) | above 95% | |
2. Technical Data | ||
Rated Voltage | 12.8V | |
Rated Capacity | 300Ah | |
Charge & Discharge | Way of charge | CC/CV(Constant Current / Constant Voltage) |
Standard Charge Current | 30A~50A or custom | |
Max Charge Current | 60A or customized | |
Over Charge cut-off voltage | 14.6v±0.025V(optional) | |
Continuous Discharge Current | ≤ 120A (Adjustable) | |
Dischargecut-off voltage | 10v ±0.025V(optional) | |
Peak Discharge Current | 150A or customized | |
Cell Over Charge Protection Voltage | 3.65v ±0.025V(optional) | |
Cell Over discharge Protection Voltage | 2.5v ±0.025V(optional) |
Place of Origin | Guangdong, China |
Brand Name | Vglory or OEM |
Model Number | BLP12V300AH |
Capacity | 12v300ah |
Battery type | solar power battery |
Product name | best battery for solar system |
Material | Li-Ion cell |
Warranty | 2 Year |
Charge Current | 0.2C |
Discharge Current | 0.5C |
Charge Cut-off Voltage | 14.6v |
Discharge Cut-off Voltage | 10.0v |
Environment-friendly
Clean and Green energy ,Pollution-free
Compacted and light weight
only 1/3 of lead acid battery
Wide temperature range
Excellent widely temperature range performance
Minimal self-discharge rate
less than 3% monthly
High energy density
energy density are more higher than lead acid battery
Long life-cycles
rechargeable to be use above 2000 times
No memory effect
stand by for use any time
2017/05/10
Powerful Performance
igh discharge rate and fast charging property
2017/05/10
PCM & BMS Protection
stable BMS system protect battery pack all time!
Our Strict quality testing for battery pack processing

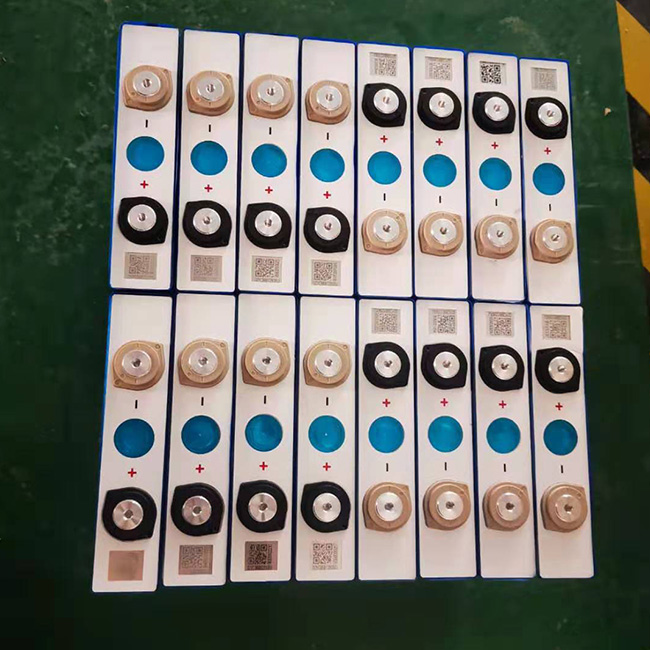

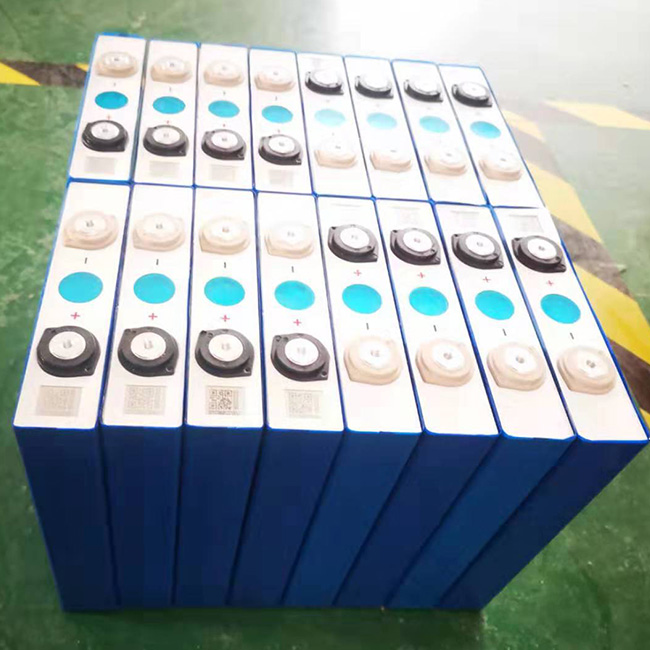

1. Battery cells capacity sorting: Automatic cell grading sorting ensure the precision of cell balance as ensure the best capacity and quality of battery pack ;
2. Battery cells multi-sorting: Taking multi-testing include Cell consistency , discharge more uniform , to maintain a stronger endurance and life .
3. Spot Automatic welding: By using full / semi-automatic production equipment to improve production efficiency and product’s quality .
4. Automatic Welding machine: Automatic welding which can avoid insufficient welding as ensure the high quality battery pack. and improve production efficiency mostly.
5. Comprehensive test: Comprehensive testing with automatic professional test machine , which Improve the battery’s cycle life and battery stability
6. Automatic sticker machine: The processing of assembly the barcode of batteries can record the capacity, voltage, power, production time , and production batch of each cell for easier trace in the future
7. Package design: Our professional staff will design the strong package or wooden package for the safety transportation of battery shipments.
Our company advantage
1: Quick response: Fast response reply within 24 hours
2: Good quality: We will arrange production of your order asap after ordered , we Provide all the best quality lithium battery pack , best service
Superior quality and cost-performance ratio , Competitive price, good sale and after-sales service .
3 : Fast delivery: once order confirmed , we will go ahead the production arrangement and get ready asap ! For sample order, we will ship in around 7 days, for bulk order , we will arrange shipment approx. 15 days.
4: Qc checking: 100% quality test before shipping.
5: Package design: we have professional engineer will design the strong package.
6: Professional Logistic: We have professional logistic team which are rich experiences in sourcing the best channel & handling shipments for clients , we can arrange shipment by air or by sea per your requirement.
7: Tracking Shipments: We will track the shipping status time by time so that buyer can receive our goods in time and safely.
8: The most important is With factory lower price , super high quality lithium battery pack!
