Lithium Solar Batteries 48v 200ah Solar Panel Rechargeable Battery

Product Parameters

That guarantee us to supply most competitive cells , battery pack and BMS solutions with advanced lithium technology .

lithium battery 48v 200ah
No.	Items	Specs
1	Model	High Power Output lithium battery 48v 200ah Rechargeable Batteries
2	Chemistry	Lifepo4 battery cell
3	Nominal Voltage	48V
4	Rated Capacity	200Ah

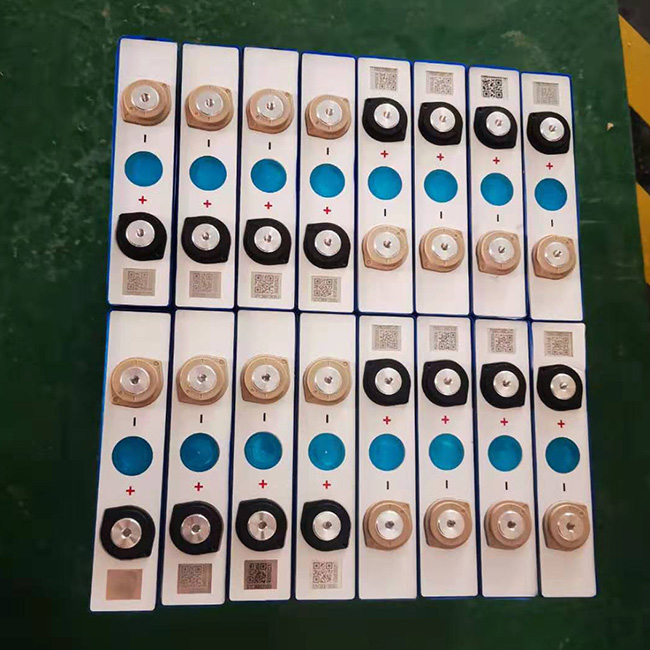

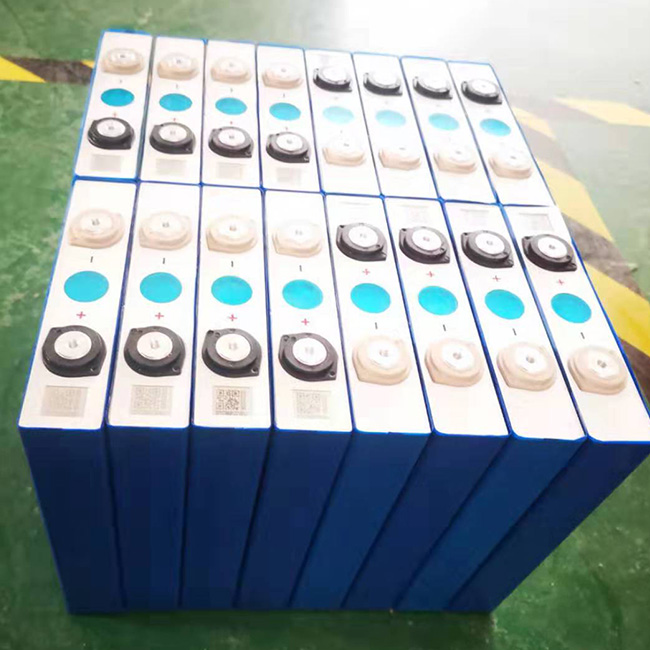

5	Battery Cell	3.2V lifepo4 battery cell
6	Battery size	530380290mm or Custom
7	Battery Weight	98 kgs
8	Standard Charge Current	≤ 20A~40A or custom
9	Max Constant Discharge Current	≤ 100A or custom
10	Continuous Discharge Current	≤ 60A or custom
11	Standard Discharge	Constant Current 0.2C/End Voltage 2.65V cell
12	Overcharge cut off voltage	54.6V( 3.7V per cell)
14	Discharge cut off voltage	39.5 (2,5V per cell)
15	Cycle Life	>2000 times (80% of initial capacity at 0.2C rate)
16	Way of Charge	CC/CV(Constant Current / Constant Voltage)
17	Charge Temperature	0~45°C 60±25%R.H.
18	Discharge Temperature	-20~55°C 60±25%R.H.
19	Storage temperature	-0~35°C 45-75% R.H.
22	Protection Function	Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Teperature, Balance

Product Description

1. Vglory battery factory manufacturing high level safety battery through assembled with high quality A grade cell. which are good replacement of lead-acid batteries and good compatible in all respects with those of lead battery . while keep the charging system and no require any additional accessories for the replacement .

2. li ion batteries are lighter than other equivalent secondary batteries-often much lighter. The energy is stored in these batteries through the movement of lithium ions.

3. It more safety and reliable than the lead acid one . Compacted size and super light weight.
The Stable BMS system with short-circuit protection , over-charge protection , over-discharge protection and over-current protection functions.

这里可以自定义设置

Product Characteristics

Place of Origin	Guangdong, China
Brand Name	Vglory or OEM
Model Number	BLP48V200AH
Capacity	48v200ah
Battery type	Solar power battery ,e-motorcycle, e-tricycle/rickshaw,e-golf cart,
Product name	best battery for solar system , e-motorcycle, e-golf cart,
Material	Lifepo4 battery cell
Warranty	2 Year
Charge Current	0.2C
Discharge Current	0.5C
Charge Cut-off Voltage	54.6v
Discharge Cut-off Voltage	39.6v

Product Details

We have professional cell engineer and mechanical engineer who can design the ideal battery pack according our customer’s

mechanical and electric requirement balanced with suitable cost structure

这里可以自定义设置

Our Strict quality testing for battery pack processing

Our Lithium battery Features

Our Lithium battery Features

Compacted and light weight

Only 1/3 of lead acid battery

Minimal self-discharge rate , less than 3% monthly

High energy density

Energy density are more higher than lead acid battery

Long life-cycles

Rechargeable to be use above 2000 times

No memory effect

Stand by for use any time

Good Voltage Performance

High-efficiency charge characteristic and fast charging properties

PCM & BMS Protection

Stable BMS system protect battery pack all time

High Safety characteristic

It does not explode or burn when bump , heavy stress, needle pricking, short circuit, overcharge and overheat

Deep cycle rechargeable characteristic

Customized

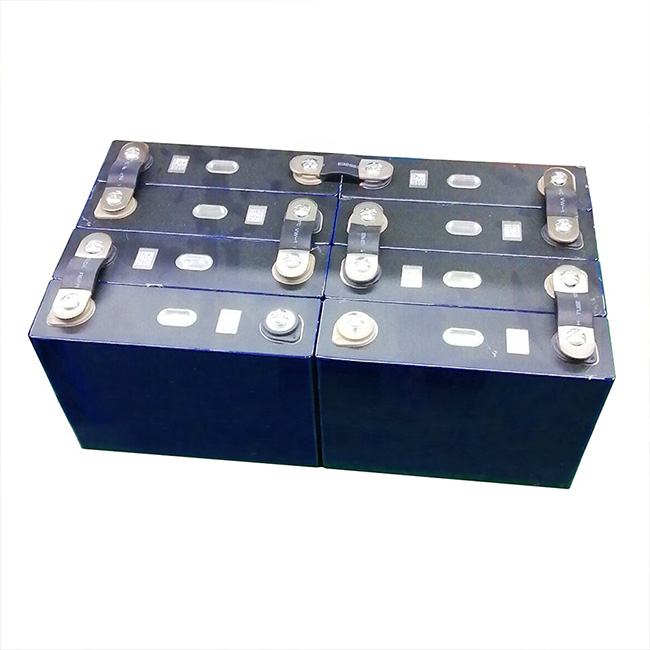

Can be assembled in parallel or series into stacks as requested

Lower internal resistance & low self discharge rate

Component Advantage

High quality Standard of Vglory Battery

Battery cell

All A grade original high quality cell. Only A grade battery cell & qualified BMS could be pass to production line and use in the battery pack assembling

Charger

With Intelligent charge system : metal casing built-in cooling system which ensure the safety performance and prolong the lifetime of battery

BMS/ PCM

Our BMS is from famous brand manufacturer with top quality , we are executing 100% quality checking before pass to production line

Indicator / LED Display

LED lights show battery capacity for clear view the status of battery clearly

Battery Pack design

Our professional engineer will design the ideal battery pack according our customer’s mechanical and electric requirement custom with suitable cost structure

Wire & plug

Wire & plug meet the standard of ROHS , which tailored for discharge safety and circle life of battery

Our Strict quality testing for battery pack processing

1. Battery cells capacity sorting: Automatic cell grading sorting ensure the precision of cell balance as ensure the best capacity and quality of battery pack
2. Battery cells multi-sorting: Taking multi-testing include Cell consistency , discharge more uniform , to maintain a stronger endurance and life.
3. Spot Automatic welding: By using full / semi-automatic production equipment to improve production efficiency and product’s quality.
4. Automatic Welding machine: Automatic welding which can avoid insufficient welding as ensure the high quality battery pack . and improve production efficiency mostly.
5. Comprehensive test: Comprehensive testing with automatic professional test machine , which Improve the battery’s cycle life and battery stability
6. Automatic sticker machine: The processing of assembly the barcode of batteries can record the capacity, voltage, power, production time, and production batch of each cell for easier trace in the future

Product Application

Energy Storage Systems : (solar and wind power system , Solar storage battery ,

energy storage system , City Grid (On / Off) , Industrial , Community and Home

UPS: uninterruptible power supply/ UPS/ Backup Power ), UPS emergency lights

Telecom Base, telecom base station

Portable Power Station

Marine: boat, Yacht, Marine battery

PRODUCT

Lithium solar batteries 48v 200ah solar panel rechargeable battery
