Best Lithium solar battery 24v 100ah lifepo4 battery for Solar Panels

这里可以自定义设置

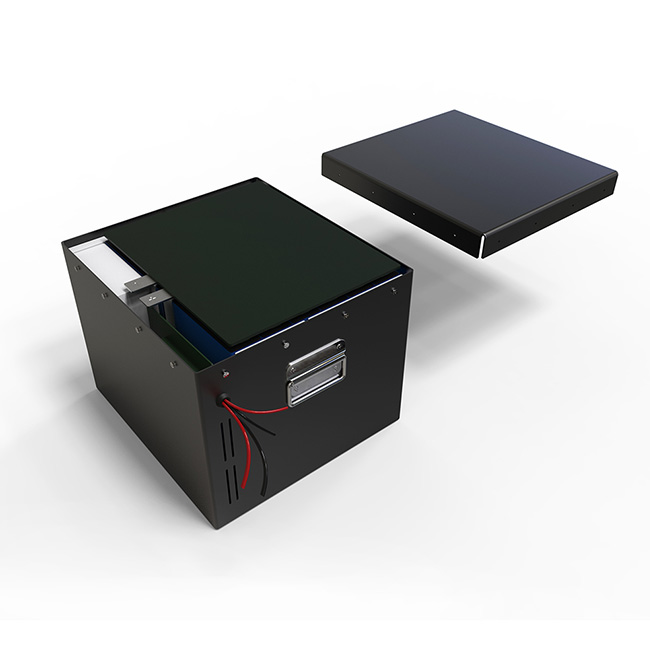

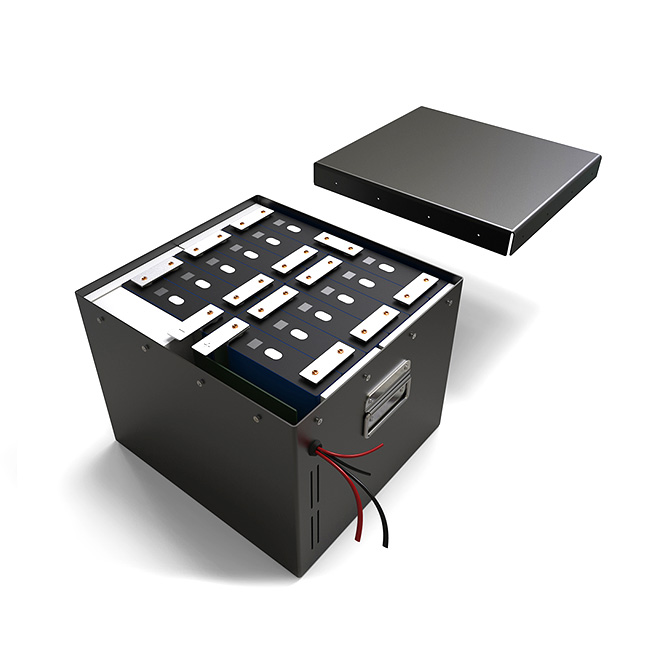

Best Lithium solar battery 24v 100ah lifepo4 battery for Solar Panels
B站不支持收货地址
B站不支持库存规格
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Model: BLP24V100Ah

MOQ: 5pcs

Payment: T/T , Western Union , Paypal

Delivery time: 10days ~ 15days

Start Port: Shenzhen

Certification: CE , ROHS , MSDS , UN38.3


Add success, do you want to check your shopping cart?

暂无分享
该产品后台详情无内容

Product Parameters

That guarantee us to supply most competitive cells , battery pack and BMS solutions with advanced lithium technology .

24v 100ah lithium battery China factory wholesale lithium battery

Technical Data

Rated Voltage

24V

Rated Capacity

100Ah

Chemistry

Li-ion battery cell 3.7V

Inner Resistance

below 50 mΩ

Weight

28.6kg

Size

521*238*218mmor custom

Working Temperature

Charge

-20°C ~ 45°C , 65±20%RH;

Discharge

-20°C ~65°C , 65±20%RH

Storage Temperature

Less than 1 month

-20°C ~ 45°C ,  45-75% R.H.

less than 3 months

-20°C ~ 35°C, 45-75% R.H.

Standard Discharge

Constant Current 0.2C/End Voltage 2.5V cell

Cycle Life

>2000 times (80% of initial capacity at 0.2C rate)

Retention of charge(store in one month)

above 95%

Charge & Discharge

Way of charge

CC/CV(Constant Current / Constant Voltage)

Standard Charge Current

≤ 20A~30A or custom

Over Charge cut-off voltage

3.7±0.025V/Cell(optional)

Continuous Discharge Current

≤ 40A or custom

Dischargecut-off voltage

2.65 ±0.025V/Cell(optional)

Protection Function

Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Teperature, Balance

Product Description

Vglory battery manufacturer offers high level safety battery through assembled with high quality A grade cell. which are good replacement of lead-acid batteries  and good compatible in all respects with those of lead battery . the charging system can be kept the same and no additional accessories are required to perform the replacement.


Widely in many applications such as:
1: Solar energy storage, light electric vehicles: such as electric bicycle, Electric golf car, small-scale electric flat car, forklift, cleanness car, electric wheelchairs
2: Large-scale electric vehicles: such as electric bus, electric car, tourist car(E-Tour Car) and commix car
3: Electric tool: electric drill, electric saw, lawn mower
The Stable BMS system with short-circuit protection , over-charge protection , over-discharge protection and over-current protection functions.

这里可以自定义设置

Product Characteristics

Place of Origin

 Guangdong, China

Brand Name

 Vglory or OEM

Model Number

 BLP24V100AH

Capacity

 24v100ah

Battery type

 solar power battery

Product name

 best battery for solar system

Material

 Li-Ion cell

Warranty

 2 Year

Charge Current

 0.2C

Discharge Current

 0.5C

Charge Cut-off Voltage

 14.6v

Discharge Cut-off Voltage

 10.0v

Product Details

We have professional cell engineer and mechanical engineer who can design the ideal battery pack according our customer’s

mechanical and electric requirement balanced with suitable cost structure

这里可以自定义设置

Our Lithium Battery Features

Battery cells capacity sorting

Automatic cell grading sorting ensure the precision of cell balance as ensure the best capacity and quality of battery pack

Battery cells IR & multi testing

Undertaking internal resistance testing ensure the best consistency of best quality battery pack , as ensure best power performance and prolong lifespan of battery pack

Automatic Welding machine

Which can avoid insufficient welding as ensure the high quality battery pack assembling . which can improve production efficiency mostly

Comprehensive Testing

Using automatic test equipment , comprehensive test of large batteries , cycles , IR, consistency , accurate data , perfect curve , ensure 100% qualified

Automatic sticker machine

The processing of assembly the barcode of batteries can record the capacity , voltage , power , production time , and production batch for easier trace in the future

Package design

Our professional engineer will design the strong package for lithium battery which ensure the safety transportation of lithium battery , which would avoid severe vibrating, impacting , extrusion , and direct light and rain

Component Advantage

High quality Standard of Vglory Battery

Our high quality Lithium battery Features

1: Quick response: quick reply within 24 hours ;
3: Good quality: We will arrange production of your order as soon as possible , Provide with best quality lithium battery pack !
4: Fast delivery: once order confirmed , we will make production arrangement and get ready asap ! For sample order, we will ship in around 7 days, for bulk order , we can get shipment ready approx. 15 days
5: QC checking: all battery pack need pass 100% quality test before shipment .
6: Professional Logistic team: Our professional logistic team which are rich experiences in sourcing the best channel & handling shipments for clients ,
7: Tracking Shipments:  We will track the shipping status timely ensure our buyers can receive goods in time and safely.
8: Provide competitive factory lower price , super high quality lithium battery pack !
9: provide 3 years warranty as ensure the best quality of battery pack !

Product Application

Energy Storage Systems: (solar energy power system , Solar LED light, Solar storage battery , energy storage system,

camping light , solar emergency light,  City Grid (On / Off) , Industrial , Community and Home
