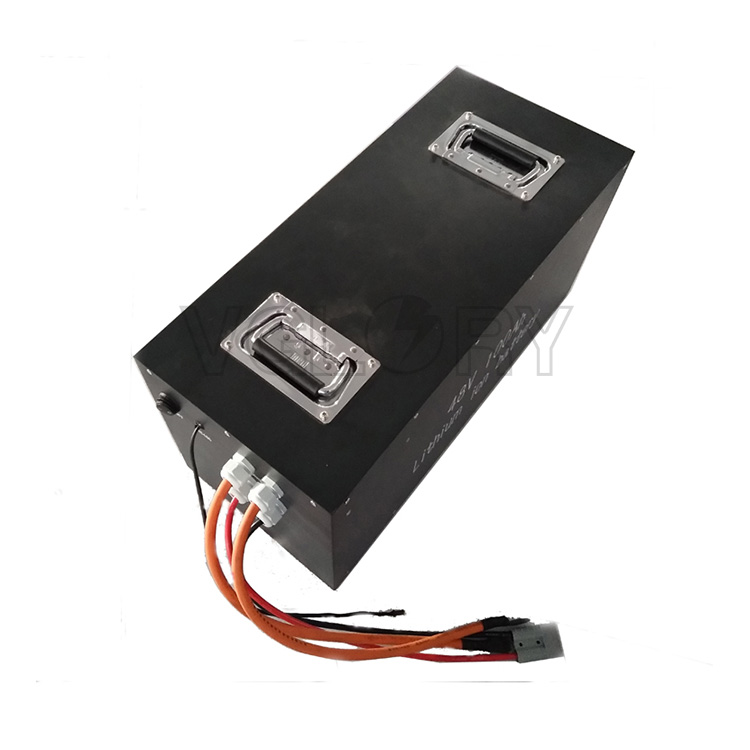

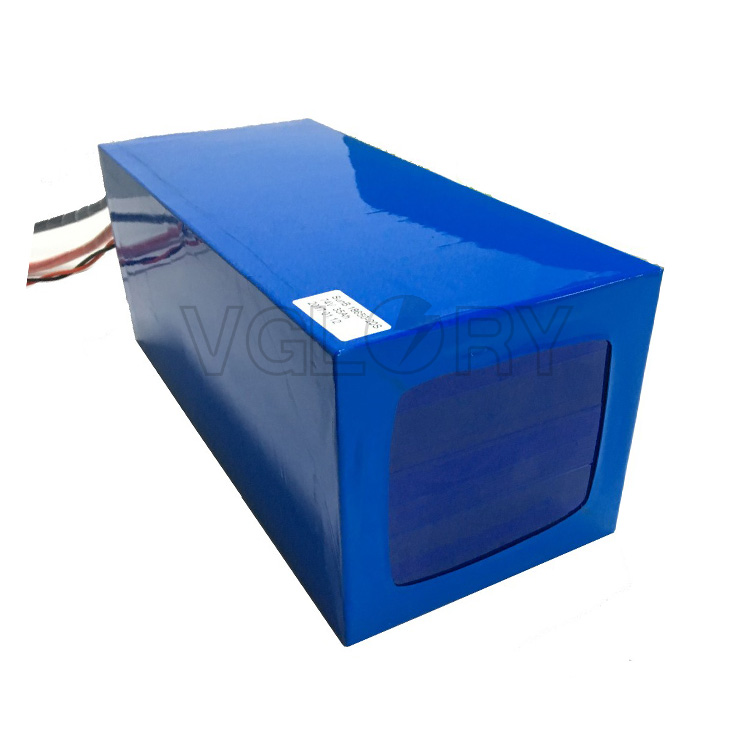

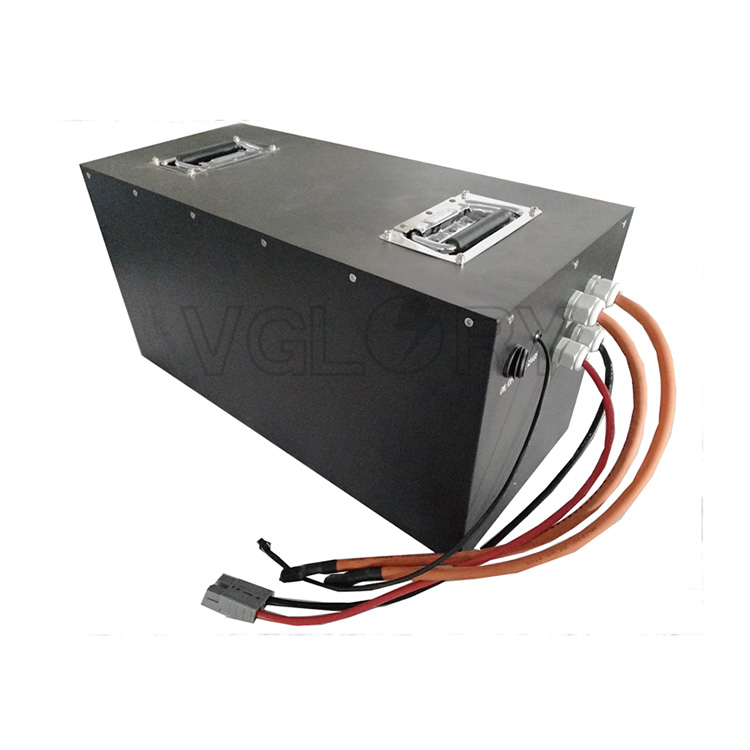

Lithium Solar Battery 24v 150ah Lifepo4 Deep Cycle Battery

Product Parameters

That guarantee us to supply most competitive cells , battery pack and BMS solutions with advanced lithium technology .

24v 150ah lithium battery China factory wholesale lithium battery
Technical Data
Rated Voltage		24V
Rated Capacity		150Ah
Chemistry		Li-ion battery cell 3.7V
Weight		38.6kg
Size		521238218mmor custom
Working Temperature	Charge	-20°C ~ 45°C , 65±20%RH;
	Discharge	-20°C ~65°C , 65±20%RH
Storage Temperature	Less than 1 month	-20°C ~ 45°C , 45-75% R.H.
	less than 3 months	-20°C ~ 35°C, 45-75% R.H.
Standard Discharge	Constant Current 0.2C/End Voltage 2.5V cell
Cycle Life	>2000 times (80% of initial capacity at 0.2C rate)
Retention of charge(store in one month)		above 95%
Charge & Discharge	Way of charge	CC/CV(Constant Current / Constant Voltage)
	Standard Charge Current	≤ 20A~30A or custom
	Over Charge cut-off voltage	3.7±0.025V/Cell(optional)
	Continuous Discharge Current	≤ 50A or custom
	Dischargecut-off voltage	2.65 ±0.025V/Cell(optional)
Protection Function	Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Teperature, Balance

Product Description

Vglory battery manufacturer offers high level safety battery through assembled with high quality A grade cell .
Which designed as the drop-in replacement for the similar capacity of lead-acid batteries, the charging system can be kept the same and no additional accessories are required to perform the replacement.
It offering 5times of the run-time but only half of the weight. Moreover, it with non-toxic and non-polluting, Eco-friendly, good thermal stability, and longer run-time features.
Vglory lithium battery is more safety and reliable than the lead acid one . Compacted size and super light weight. The Stable BMS system with short-circuit protection , over-charge protection , over-discharge protection and over-current protection functions.

这里可以自定义设置

Product Characteristics

Place of Origin	Guangdong, China
Brand Name	Vglory or OEM
Model Number	BLP24V150AH
Capacity	24v150ah
Battery type	solar power battery
Product name	best battery for solar system
Material	Li-Ion cell
Warranty	2 Year
Charge Current	0.2C
Discharge Current	0.5C
Charge Cut-off Voltage	14.6v
Discharge Cut-off Voltage	10.0v

Product Details

We have professional cell engineer and mechanical engineer who can design the ideal battery pack according our customer’s

mechanical and electric requirement balanced with suitable cost structure

这里可以自定义设置

Our Lithium Battery Features

Battery cells capacity sorting

Automatic cell grading sorting ensure the precision of cell balance as ensure the best capacity and quality of battery pack

Battery cells IR & multi testing

Undertaking internal resistance testing ensure the best consistency of best quality battery pack , as ensure best power performance and prolong lifespan of battery pack

Automatic Welding machine

Which can avoid insufficient welding as ensure the high quality battery pack assembling . which can improve production efficiency mostly

Comprehensive Testing

Using automatic test equipment , comprehensive test of large batteries , cycles , IR, consistency , accurate data , perfect curve , ensure 100% qualified

Automatic sticker machine

The processing of assembly the barcode of batteries can record the capacity , voltage , power , production time , and production batch for easier trace in the future

Package design

Our professional engineer will design the strong package for lithium battery which ensure the safety transportation of lithium battery , which would avoid severe vibrating, impacting , extrusion , and direct light and rain

Component Advantage

High quality Standard of Vglory Battery

Battery cell

We apply with all A grade battery cell , stewing 3days more in warehouse before go for Assemble step which ensure the best quality

Charger

Designed with metal casing built-in cooling system , as to ensure the charge safety and prolong lifespan of battery

Bluetooth function

We can custom specific function per request , with clearly understanding of battery status all the time

BMS Intelligent Management system

Our BMS is from famous brand manufacturer with good quality , all BMS been executing 100% quality check for production

LED Display

Show battery capacity status clearly with displaying

Battery Pack design

Our professional engineer will design the best performance battery pack per our customer’s mechanical and electric requirement

Our good quality Lithium battery Features

1. Environment-friendly: Clean and Green energy ,Pollution-free ;
2: Compacted and light weight: only 1/3 of lead acid battery ;
3: Wide temperature range: Excellent widely temperature range performance ;
4: Minimal self-discharge rate , less than 3% monthly.
5: Low internal resistance
6: Low self-discharge rate , only 3% monthly
7: Wide temperature range: with Good performance at high temperature and high temperature resistance ;
8: High energy density: per volume density is more high than lead acid battery .
9: Long life-cycles: Long life-cycles : can be circularly used , more 2000 times recycles , 8 times of Lead-acid battery.
10: Custom acceptable: voltage , capacity , shape , size , case etc ;
11: No memory effect: always stand by ready for charge and discharge , with no need to charge after a full discharge.
12: Good Powerful Performance: high discharge rate and fast charging charateristic ;
13: PCM & BMS Protection, stable BMS system protect battery pack all time !

Product Application

Energy Storage Systems: (solar energy power system , Solar LED light, Solar storage battery , energy storage system,

camping light , solar emergency light, City Grid (On / Off) , Industrial , Community and Home

UPS: uninterruptible power supply/ UPS/ Backup Power ), UPS emergency lights

Telecom Base, telecom base station

Portable Power Station

Marine: boat, Yacht, Marine battery

PRODUCT

Best Lithium solar battery 24v 150ah lifepo4 deep cycle battery
