Professional Manufacturer of One Stop Solutions Provider for all kind of lithium battery 10 years more .

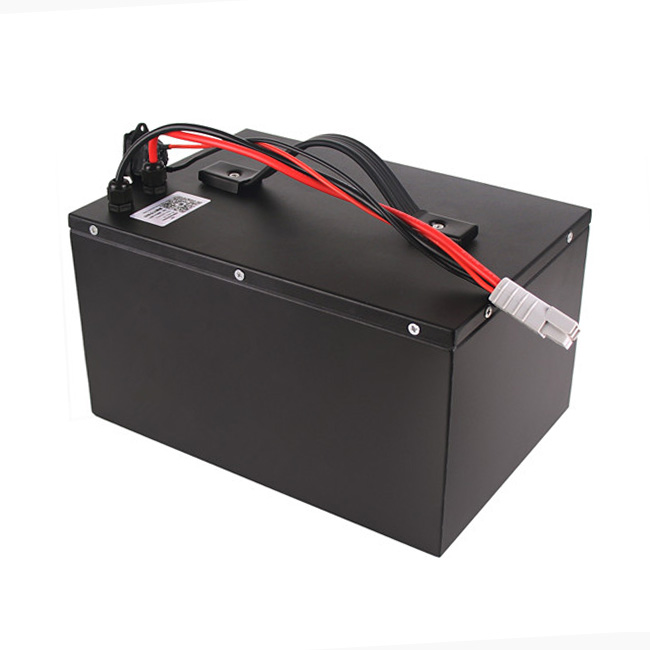

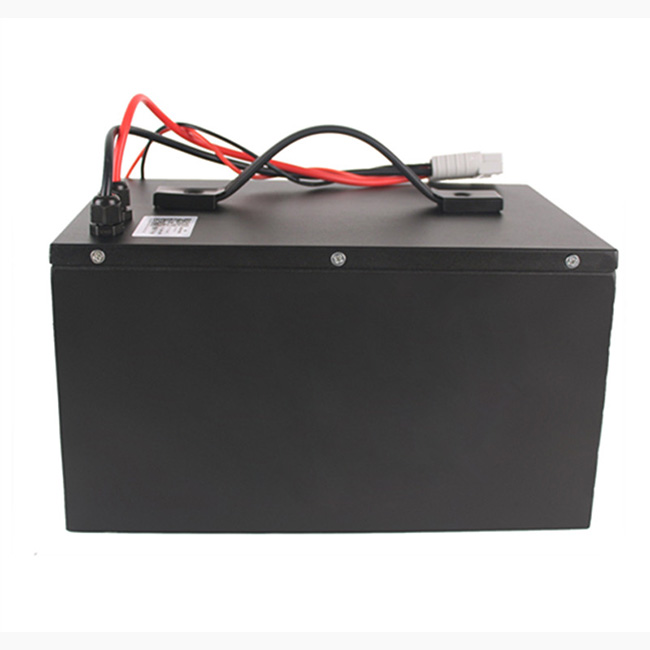

Model: BP72V60Ah
MOQ: 5pcs
Payment: T/T , Western Union , Paypal
Delivery time: 10days ~ 15days
Start Port: Shenzhen
Certification: CE , ROHS , MSDS , UN38.3
72v 60ah lithium batteryChina factory wholesale custom lithium battery | ||
Technical Data | ||
Rated Voltage | 72V | |
Rated Capacity | 60Ah | |
Weight | 43.6kg | |
Size | 350*290*180mm/ custom | |
Chemistry | Li-ion battery cell 3.7V | |
Working Temperature | Charge | -20°C ~ 45°C , 65±20%RH; |
Discharge | -20°C ~65°C , 65±20%RH | |
Storage Temperature | Less than 1 month | -20°C ~ 45°C , 45-75% R.H. |
less than 3 months | -20°C ~ 35°C, 45-75% R.H. | |
Charging time | Standard | 4~5hours |
Max | 2~3hours | |
Standard Discharge | Constant Current 0.2C/End Voltage 3V cell | |
Cycle Life | >2000 times (80% of initial capacity at 0.2C rate) | |
Retention of charge(store in one month) | Above 95% | |
Charge & Discharge | Way of charge | CC/CV(Constant Current / Constant Voltage) |
Standard Charge Current | ≤ 6A~15A or custom | |
Over Charge cut-off voltage | 4.2±0.025V/Cell(optional) | |
Continuous Discharge Current | ≤ 38A or custom | |
Dischargecut-off voltage | 3±0.025V/Cell(optional) | |
Protection Function | Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Teperature, Balance | |
Product Description
Vglory battery factory producing high quality lithium battery by assembled with high quality A grade battery cell. which are good replacement of lead-acid batteries and good compatible. keep the same charging system.
As more and more pollution, Warming seriously, Earth Close to Unfit for human Living. andwe must begin to use high-tech The energy to change the day of the disaster.
Lithium batteries are common widely use in many fields.also now more popular in defense applications, automotive, and aerospace applications due to their high energy density. Li-ion batteries are lighter than other equivalent secondary batteries;
which is most popular type of battery. with best capacity-to-weight ratios, no memory effect, and a lot of advantages for using the lithium battery.
Product Characteristics
Place of Origin | Guangdong, China |
Brand Name | Vglory or OEM |
Model Number | BP72V60AH |
Capacity | 72v60ah |

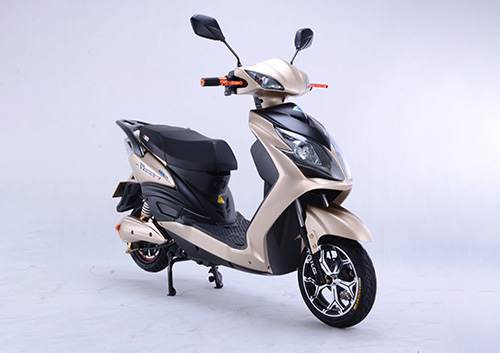

Battery type | E-motorcycle, e-tricycle/rickshaw, e-golf cart, |

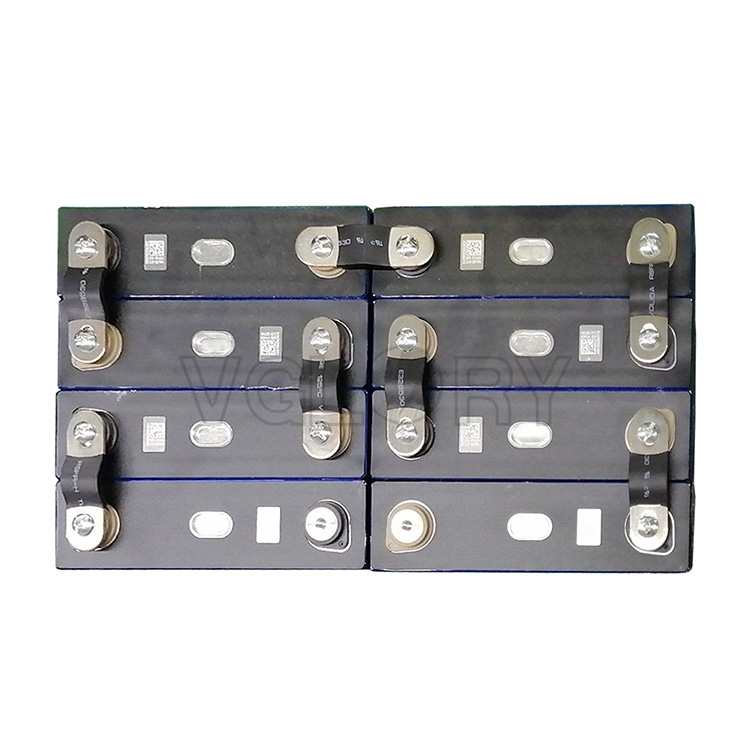

Material | Li-ion battery cell |
Warranty | 2 Year |
Charge Current | 0.2C |
Discharge Current | 0.5C |
Charge Cut-off Voltage | 84v |
Discharge Cut-off Voltage | 60v |
Environment protection
Accredited with CE, Green energy poses no pollution on our environment . extreme stable chemistry, non-toxic;
Customized
Capacity ,voltage and size is ok customized , can assembled battery cell different stacks as requested!
Wide temperature range
Excellent widely temperature range performance from :-20°C~+60°C;
Wide range power capacity available
12v 24v 36v 48v 60v 72v 5ah~300ah
Long circle cycles
Rechargeable be circularly used , more than 2000 charge /discharge cycle , 8times of Lead-acid battery.
Low internal resistance
With best performance of lithium battery pack;
Maintenance Free
Only charge it once every month when in storage status
Excellent power performance
Best consistency, high power output,1C continuous charging ,3C pulse for normal cells;
Low internal resistance
low self-discharge rate
No memory effect
Always ready for charge and discharge , no need to charge after a full discharge
PCM & BMS Protection
Protection - Dual IC chips, built inside the battery to balance protect the battery
Vglory battery factory have been in this field for many years which is established in year 2010 and have rich experiences in R&D
