Professional Manufacturer of One Stop Solutions Provider for all kind of lithium battery 10 years more .

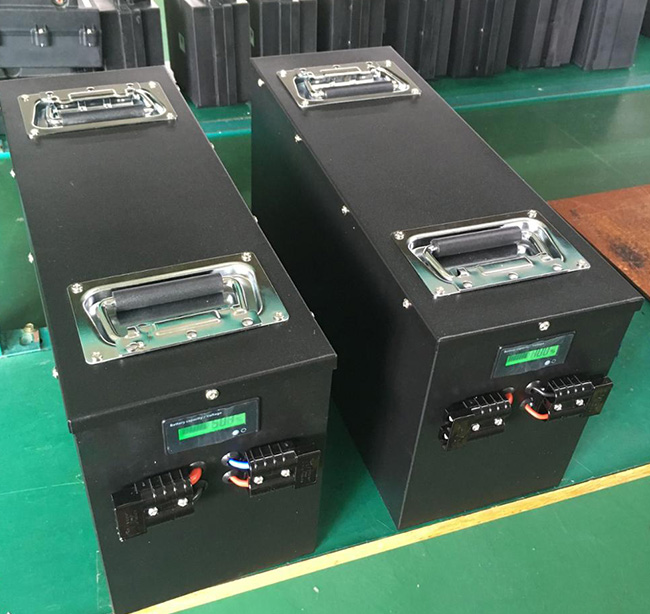

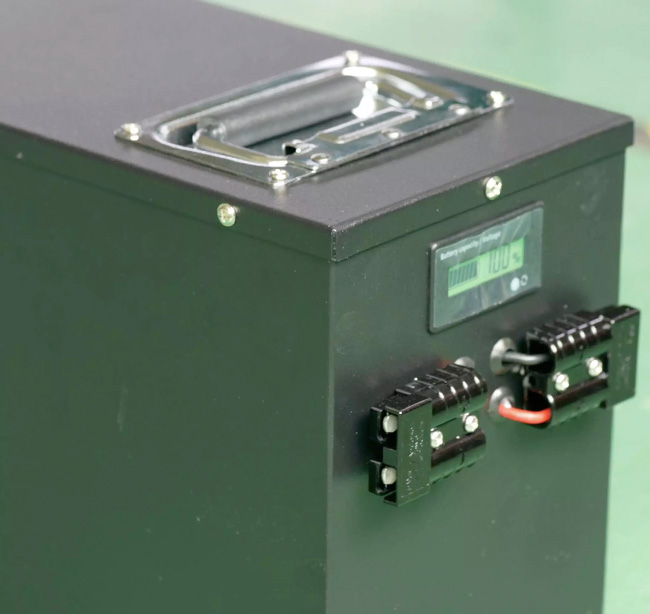

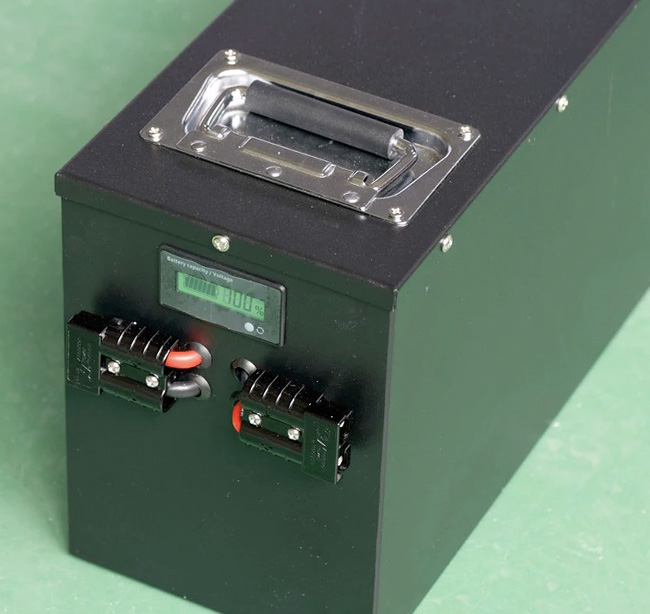

Model: BP72V100Ah
MOQ: 5pcs
Payment: T/T , Western Union , Paypal ,
Delivery time: 10days ~ 15days
Start Port: Shenzhen
Certification: CE , ROHS , MSDS , UN38.3
Specification of LifePO4 battery 72v 100ah lithium ion battery | ||
No. | Model | High Power 72v 100ah lithium ion battery Rechargeable Batteries |
1 | Chemistry | Li-ion |
2 | Nominal Voltage | 72V |
3 | Rated Capacity | 100Ah |
4 | Battery size | 804*381*238mm or Custom |
5 | Battery Weight | 76.8 kgs |
6 | Max Constant Discharge Current | ≤ 80A or custom |
7 | Standard Charge Current | ≤ 10A~20A or custom |
8 | Continuous Discharge Current | ≤ 50A or custom |
9 | Fully charged Voltage | 73.6V (3.2V per cell) |
10 | Overcharge cut off voltage | 85.1V( 3.65V per cell) |
11 | Discharge cut off voltage | 60.9v |
12 | Standard Discharge | Constant Current 0.2C/End Voltage 2.5V cell |
13 | Cycle Life | >2000 times (80% of initial capacity at 0.2C rate) |
14 | Way of Charge | CC/CV(Constant Current / Constant Voltage) |
15 | Charge Temperature | 0~45°C 60±25%R.H. |
16 | Discharge Temperature | -20~55°C 60±25%R.H. |
17 | Storage temperature | -0~35°C 45-75% R.H. |
18 | Protection Function | Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Teperature, Balance |
Product Description
Vglory battery factory producing high quality lithium battery by assembled with high quality A grade battery cell. which are good replacement of lead-acid batteries and good compatible. keep the same charging system.
Lithium batteries are common widely use in many fields .also for defense applications , automotive, and aerospace applications due to their high energy density, with best capacity-to-weight ratios, no memory effect, and a lot of advantages for using the lithium battery. Li-ion batteries are lighter than other equivalent secondary batteries ; which is most popular type of battery.
As more and more pollutions which caused warming problem seriously, we must begin to use high-tech energy to change the day of the disaster . a new energy, the lithium battery is become the preferred battery technology in many fields , with most long cycle life, no pollution to the environment of new energy materials!
Product Characteristics
Place of Origin | Guangdong, China |
Brand Name | Vglory or OEM |
Model Number | BP72V100AH |
Capacity | 72v100ah |
Battery type | E-motorcycle, e-tricycle/rickshaw, e-golf cart, |
Material | Li-ion battery cell |
Warranty | 2 Year |
Charge Current | 0.2C |
Discharge Current | 0.5C |
Charge Cut-off Voltage | 84v |
Discharge Cut-off Voltage | 60v |
Environment protection
Accredited with CE, Green energy poses no pollution on our environment . extreme stable chemistry, non-toxic;
Customized
Capacity ,voltage and size is ok customized , can assembled battery cell different stacks as requested!
Wide temperature range
Excellent widely temperature range performance from :-20°C~+60°C;
Wide range power capacity available
12v 24v 36v 48v 60v 72v 5ah~300ah
Long circle cycles
Rechargeable be circularly used , more than 2000 charge /discharge cycle , 8times of Lead-acid battery.
Low internal resistance
With best performance of lithium battery pack;
Maintenance Free
Only charge it once every month when in storage status
Excellent power performance
Best consistency, high power output,1C continuous charging ,3C pulse for normal cells;
Low internal resistance
low self-discharge rate
No memory effect
Always ready for charge and discharge , no need to charge after a full discharge
PCM & BMS Protection
Protection - Dual IC chips, built inside the battery to balance protect the battery
Vglory battery factory have been in this field for many years which is established in year 2010 and have rich experiences in R&D
