Lithium Battery Storage 60v 30ah Lithium Battery For Ebike

Product Parameters

That guarantee us to supply most competitive cells , battery pack and BMS solutions with advanced lithium technology .

60v 30ah lithium battery China factory wholesale custom lithium battery
Technical Data±
Rated Voltage		60V
Rated Capacity		30Ah
Weight		13.6kg
Size		265150100mm /custom
Chemistry		Lithium battery cell 3.2v or 3.7V
Working Temperature	Charge	-20°C ~ 45°C , 65±20%RH;
	Discharge	-20°C ~65°C , 65±20%RH
Storage Temperature	Less than 1 month	-20°C ~ 45°C , 45-75% R.H.
	less than 3 months	-20°C ~ 35°C, 45-75% R.H.
Charging time	Standard	4~5hours
	Max	2~3hours
Standard Discharge	Constant Current 0.2C/End Voltage 3V cell
Cycle Life	>1500 times (80% of initial capacity at 0.2C rate)
Retention of charge(store in one month)		above 95%
Charge & Discharge	Way of charge	CC/CV(Constant Current / Constant Voltage)
	Standard Charge Current	≤ 6~15A or custom
	Over Charge cut-off voltage	4.2±0.025V/Cell(optional)
	Continuous Discharge Current	≤ 20A or custom
	Dischargecut-off voltage	3.0 ±0.025V/Cell(optional)
Protection Function	Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Teperature, Balance

Product Description

Vglory battery factory producing high quality lithium battery by processing with high quality A grade battery cell . which is nicely replacement for lead-acid batteries and good compatible in all aspects . the charging system no need change and no need additional accessories

Lithium battery With long cycle life, no pollution to environment of new energy materials ! A New hope Change in future ! it is one of the most popular type of battery . since with the best energy-to-weight ratios , no memory effect , etc.
Lithium batteries are more and more common widely use in many fields such as solar storage , UPS , Telecom , military medical , also growing in popularity for defense, automotive , and aerospace applications due to their high energy density .

这里可以自定义设置

Product Characteristics

Place of Origin	Guangdong, China
Brand Name	Vglory or OEM
Model Number	BP60V30AH
Capacity	60v30ah
Battery type	Solar power battery solar power battery , e-motorcycle, e-tricycle/rickshaw, e-golf cart
Material	Lifepo4 cell
Warranty	2 Year
Charge Current	0.2C
Discharge Current	0.5C
Charge Cut-off Voltage	71.4v
Discharge Cut-off Voltage	51v

Product Details

We have professional cell engineer and mechanical engineer who can design the ideal battery pack according our customer’s

mechanical and electric requirement balanced with suitable cost structure

这里可以自定义设置

Our Lithium Battery Features

Environment-friendly

Accredited with CE,Pollution-free, environment friendly , Non-toxic, non-contaminating

Compacted size and super light weight

About 1/2 the volume and 1/3 the weight of the lead-acid battery, small size and high power performance , with the best power-to-weight radio.

Wide temperature range

Excellent widely temperature range performance from :-20°C~+60°C

High energy capacity density

Energy density per volume is high

Long life-cycles

Rechargeable be circularly used , more than 2000 charge /discharge cycle , 8times of Lead-acid battery

Low internal resistance

which ensure the best performance of lithium battery pack Economical : the average price per year is less than the lead-acid battery.

Good power performance

Capacity, resistance, Voltage, platform time consistency is good , also strong current charge and discharge capability

No memory effect

always ready for charge and discharge , no need to charge after a full discharge

PCM & BMS Protection

Protection - Dual IC chips, anti-short circuit, anti-over charger, anti-over current, anti-overload etc

Customized accepted

We could design all battery packs per your’ requirements and provide OEM service

Deep cycle & maintenance free

Only charge every month if store the battery

Very low internal resistance & very low self-discharge rate

Component Advantage

High quality Standard of Vglory Battery

Battery cell

Will test full performance including long life cycle status before production , make sure A grade battery cells for best quality assurance

Charger

Custom with metal casing built-in cooling system which for good performance! Bluetooth function: customized function per request , viewing full details of battery status via APP any time

Intelligent BMS system

According to strictly quality control system ISO 9001.2018 . the BMS from first grade manufacture in China , taking 100% quality check before production

LED indicator

For client understand the status clearly anytime ;

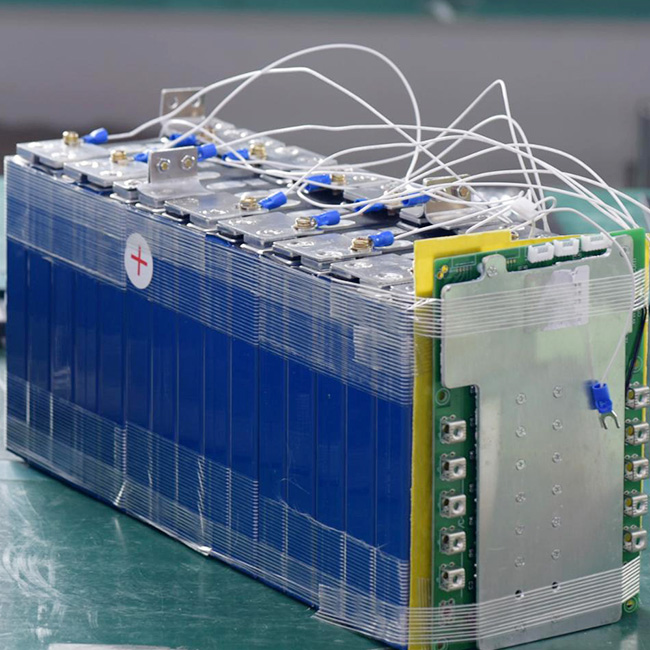

Battery Pack design

The lithium battery pack is been designed considerting the best mechanical and electric performance

Wire & Plug

We tailored all qualified wire & plug basing different battery pack ‘s requirements to ensure the best performance

Product Application

Widely used in fields such as: E-mobility: (e-bike , e-scooter, e-skateboard, e-tourist car , e-motorcycle,

e-tricycle /rickshaw , e-wheelchair, e-golf cart, e-forklift, e-tourist vehicle, RV/ caravan, marine,etc.),

UPS: uninterruptible power supply/ UPS/ Backup Power ), UPS emergency lights

Telecom Base, telecom base station

Portable Power Station

Marine: boat, Yacht, Marine battery
