Professional Manufacturer of One Stop Solutions Provider for all kind of lithium battery 10 years more .
Model: BP60V40Ah
MOQ: 5pcs
Payment: T/T , Western Union , Paypal
Delivery time: 10days ~ 15days
Start Port: Shenzhen
Certification: CE , ROHS , MSDS , UN38.3
Specification of 60v 40ah lithium ion battery pack | ||
No. | Model | High Capacity Density 60v 40ah lithium ion battery pack Rechargeable |
1 | Chemistry | Li-ion battery cell |
2 | Nominal Voltage | 60V |
3 | Rated Capacity | 40Ah |
4 | Battery Cell | 3.7V or 3.2v lithium battery cell |
5 | Battery size | 320*260*150mm or custom |
6 | Battery Weight | 24.6kgs |
7 | Max Constant Discharge Current | ≤ 30A or custom |
8 | Standard Charge Current | ≤ 5A~15A or custom |
9 | Continuous Discharge Current | ≤ 25A or custom |
10 | Fully charged Voltage | 62.9V (3.7V per cell) |
11 | Overcharge cut off voltage | 71.4V( 4.2V per cell) |
12 | Discharge cut off voltage | 51v |
13 | Standard Discharge | Constant Current 0.2C/End Voltage 51V |
14 | Way of Charge | CC/CV |
15 | Cycle Life | >1200 times (80% of initial capacity at 0.2C rate) |
16 | Charge Temperature | 0~45°C 60±25%R.H. |
17 | Discharge Temperature | -20~55°C 60±25%R.H. |
18 | Storage temperature | -0~35°C 45-75% R.H. |
19 | Charging Time (Std.) | 4~5hours |
20 | Charging Time (Max.) | 2~3hours |
21 | Protection Function | Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Teperature, Balance |
Product Description
Vglory battery factory producing high quality lithium battery by processing with high quality A grade battery cell. which is nicely replacement for lead-acid batteries and good compatible in all aspects. the charging system no need change and no need additional accessories
Lithium battery With long cycle life, no pollution to environment of new energy materials ! A New hope Change in future ! it is one of the most popular type of battery. since with the best energy-to-weight ratios, no memory effect , etc.
Lithium batteries are more and more common widely use in many fields such as solar storage , UPS , Telecom, military medical , also growing in popularity for defense, automotive , and aerospace applications due to their high energy density.
Product Characteristics
Place of Origin | Guangdong, China |
Brand Name | Vglory or OEM |
Model Number | BP60V40AH |
Capacity | 60v40ah |
Battery type | Solar power battery solar power battery , e-motorcycle, e-tricycle/rickshaw, e-golf cart |
Material | Lifepo4 cell |
Warranty | 2 Year |
Charge Current | 0.2C |
Discharge Current | 0.5C |
Charge Cut-off Voltage | 71.4v |
Discharge Cut-off Voltage | 51v |
Environment-friendly
Accredited with CE,Pollution-free, environment friendly , Non-toxic, non-contaminating
Compacted size and super light weight
The best power-to-weight radio , with good power performance, but 1/2 the volume and 1/3 the weight of the lead-acid one
Wide temperature range
Excellent characteristic , available for use when the temperature ranges from 10°C to -55°C
High energy capacity density
Energy density per volume is high
Long life-cycles
Rechargeable be circularly used up to 2000 charge /discharge cycles
Low internal resistance
which ensure the best performance of lithium battery pack Economical : the average price per year is less than the lead-acid battery.
Good power performance
Capacity, resistance, Voltage, platform time consistency is good , also strong current charge and discharge capability
No memory effect
it is ready connect for charge and discharge anytime

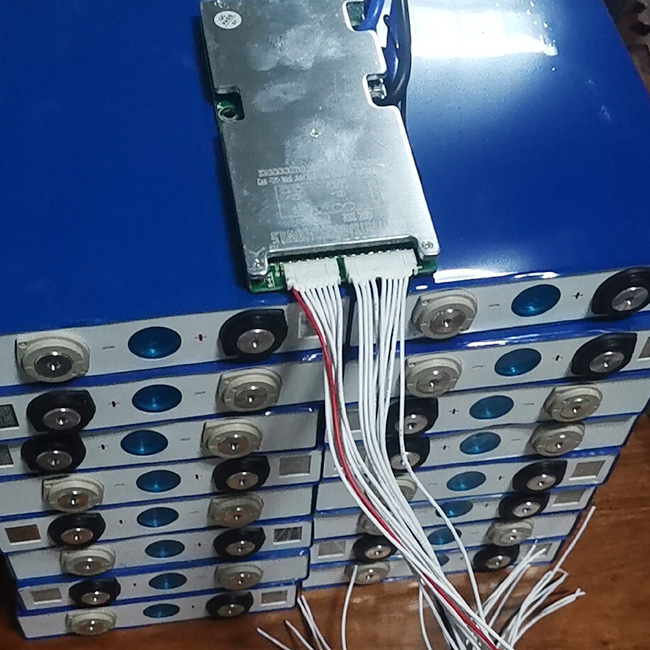

PCM & BMS Protection
with full production of battery all the time , anti-short circuit, anti-over charger, anti-over current, anti-overload etc
Customized accepted
We could design all battery packs per your’ requirements and provide OEM service
Deep cycle & maintenance free
just charge every month if battery keep in warehouse
Vglory battery factory have been in this field for many years which is established in year 2010 and have rich experiences in R&D
