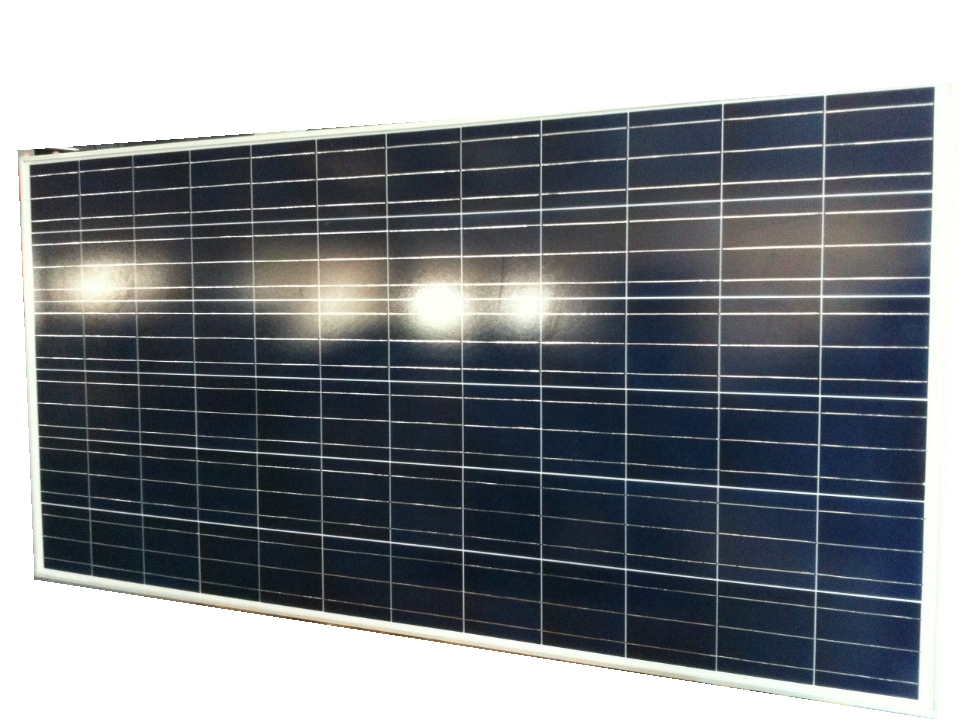

Vg High Tech Solar Energy China Solar Panels 210W For Solar Powered Generator-Vglory

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Vglory

Model Number:: VGP210W

Material:: Polycrystalline Silicon

Max. Power:: 210W

Number of Cells:: 54cs(6*9)

Size:: 1482*992*40(mm)

Certificate:: TUV

Supply Ability

Supply Ability:: 100000 Watt/Watts per Day

Vg High Tech Solar Energy China Solar Panels 210W For Solar Powered Generator

Vglory energy is Professional Manufacturers Solar Panel and Energy Product With advanced materials and equipments, our modules are designed and manufactured in consistency with IEC61215 and IEC61730 standards which guarantee excellent electrical performance and the long span of 25 years for the solar panels.

• ISO 9001:2008 and ISO 14001:2004 factory

• Using the newest technology and equipments , 90% of the production facilities are import from
Germany , Italy and US

Warranties of solar panel :
1. 10 years limited product warranty
2. 15 years at 90% of the minimal rated power output
3. 25 years at 80% of the minimal rated power output

Solar enegy is the best alternative renewable energy to standard energy source like coal , oil , fossil fuel etc which is limited , while solar enegy is the best renewable energy which is environmental protected while there is no any carbon emission and no any harmful substances by-products . Not like generator ,solar panels produce clean , environment-friendly, quiet solar energy ,safely and best of all saves money! we are making efforts to building a green globe .

Maximum Power(Pmax)	210W
Power Tolerance	0~+3%
Open Circuit Voltage(Voc)	33.20V
Short Circuit Current(Isc)	8.53A
Maximum Power Voltage(Vmp)	26.40V
Maximum Power Voltage(Imp)	7.96A
Module Efficiency	14.28%
Max. System Voltage	1000VDC
Solar Cells	Polycrystalline156*156mm(6 inch)
Cells series	54cs(6*9)
Bypass Diodes	6pcs 12A
Temperature Coefficients of Pmax	-0.47%/°C
Temperature Coefficients of Voc	-0.33%/°C
Temperature Coefficients of Isc	0.05%/°C
NOTC-Nominal Operating Cell Tepm.	45℃(±2°C)
STC Condition	1000W/m2, AM1.5, 25°C

5> 210W Polycrystalline Solar Module Mechanical Characteristics

Dimension	148299240(mm)
Frame	Anodized Aluminum Alloy
Construction	Front: High transmision 3.2mmTempered glass; Rear: White PET; Encapsulant: EVA
Output cables	12AWG cable with weatherproof connectors.cable lengths 900mm
Weight	18.0KGS

Front Cover	3.2mm thick low iron temperature glass
Back Cover	TPT(Tediar-PET-Tediar)
Encapsulant	EVA(Ethylene vinyl acetate)
Frame	Anodized aluminum alloy, double wall
Junction Box	IP65 rated, TUV certificated
Max Load	Certified to 5400Pa

High Conversion Efficiency Solar Module Using UV-resistant silicon.
Anti-aging EVA, high frame resistant TPT to laminate and anodized aluminum alloy frame ,
Be resistant to atmospheric exposure and effects of delaminating
High quality Junction box with Built-in diodes prevents reverse charging and keep excellent protection ;
Advanced photovoltaic technologies : Aesthetic appearance with excellent efficiency based on innovative, Be resistant to atmospheric exposure and effects of delaminating
Strong aluminum frame, passing mechanical load test of 5400Pa, instead of the normal2400Pa,to withstand heavier snow load and higher wind-pressure
High-transmissivity low-iron tempered glass, strong aluminum frame
The solar cell efficiency is 16%-18.5%. All material certificates by TUV IEC test, meet the solar panel 25 years at outdoor performance
Aesthetic appearance with excellent efficiency based on innovative tech
Rigorous quality control system meet highest international standards

1. High efficiency, high safety, High stability ,high reliability
2. Output power tolerance ofguaranteed +-3% and ensuring investment return.
Optimized Packaging to protect product during loading and delivery .
4. Strong productive ability and quick delivery.
5. Enjoy our Excellent quality, competitive price, prompt delivery and on-time service

1. On-grid commercial ,utiitysolar power systems.

2. Home solar lighting system .

4. Off-grid solar power system.

5. Communications,pumping and irrigation.

6. Commercial and industrial building roof-top systems

1). Excellent quality, competitive price, prompt delivery and on-time service

2). High efficiency, high safety, High stability ,high reliability

3). Optimized Packaging to protect product during loading and delivery .

4). Strong productive ability and quick delivery.

5). Enjoy our Excellent quality, competitive price, prompt delivery and on-time service

People more and more like using renewable Solar Energy !

Nowadays Global warning is getting worsening in the world , it is mostly because our world are heavily depends on non-renewable energy source like oil , natural gas , fossil fuel which been widely used for transportation , electricity etc .

Solar power is renewable. This is a huge leap from fossil fuels which have a limited amount . Solar energy is not as readily as accessible and requires more advanced technologies to derive the same amount of energy as other standard enegy sources would provided . solar electricity have been proved a rising star in the realms of renewable energy resources , there are many advantages comparing to the traditional non-renewable energy .

The product has a variety of excellent properties and is increasingly used in various fields. This product allows for more than 2000 charge/discharge cycles. The product is fully adapted to market trends and has great potential for wide application. This product allows for more than 2000 charge/discharge cycles.
