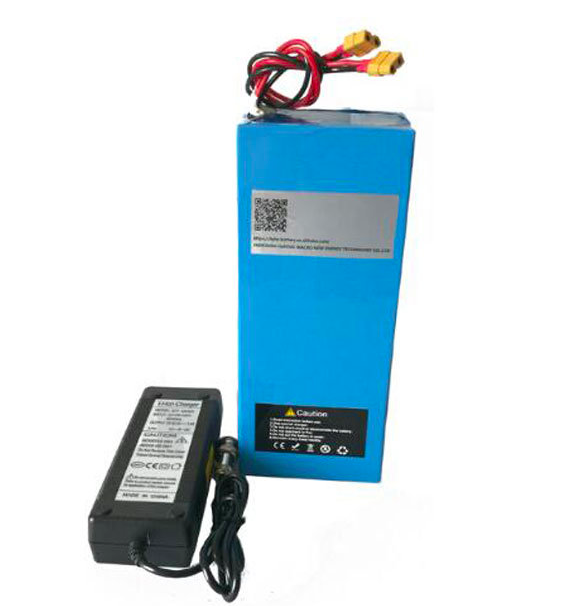

Small Size Ebike Lithium Battery 24V 12ah For Electric Bike Lithium Batteries For Sale
iFePO4 material is by far the safest, most long cycle life, no pollution to our green environment of one new energy materials ! A New hope,Change our life in the future !
As more and more pollutions raising ,globe Warming seriously,Earth Close to Unfit for human Living.
Now, we must pay much attentions and people begin to use the high-tech energy to change the day of the disaster.
LiFePO4 Battery Is a new energy,It will not cause pollution,It does not produce an explosion,Long life,Structural stability,Cheaper!
LiFePO4 battery will become the preferred battery technology for traction purposes and other situations in which high discharge characteristics and cycle life are important. (LiFePO4) batteries are based on the original lithium-ion chemistry, but LiFePO4 is used as the cathode material instead of lithium cobalt dioxide (LiCoO2). The latter is found in the most commonly used batteries in laptops, cell phones, MP3 players, etc.
Lithium batteries are lighter than other equivalent secondary batteries-often much lighter. The energy is stored in these batteries through the movement of lithium ions.
As more and more pollution,Warming seriously,Earth Close to Unfit for human Living.
Now, we must begin to use high-tech The energy to change the day of the disaster.
Specification of 24v Lithium Battery Pack For Electric Bike | ||
No. | Items | Specs |
01 | Model | Long Cycle Life Ebike Lithium Battery 24V 12ah Lithium Batteries For Sale |
03 | Nominal Voltage | 24V |
04 | Rated Capacity | 12Ah |
05 | Battery Cell | 18650 3.7v 7s6p |
06 | Battery size | Customized |
07 | Battery Weight | 5.5 kgs |
08 | Max Constant Discharge Current | 1C |
09 | Standard Charge Current | 0.2CA |
10 | Continuous Discharge Current | According to customers' requirement |
11 | Fully charged Voltage | 25.9V (3.7V per cell) |
12 | Overcharge cut off voltage | 29.4( 4.2V per cell) |
13 | Discharge cut off voltage | 21V |
14 | Standard Discharge | Constant Current 0.2C/End Voltage 21V |
17 | Way of Charge | CC/CV |
18 | Cycle Life | >800 times (80% of initial capacity at 0.2C rate) |
19 | Charge Temperature | 0~45℃ 60±25%R.H. |
20 | Discharge Temperature | -20~55°C 60±25%R.H. |
21 | Storage temperature | -0~35°C 45-75% R.H. |
22 | Charging Time (Std.) | 4~5hours |
23 | Charging Time (Max.) | 2~3hours |
24 |
Application for | eletric bike, electric scooter, electric skateboard, e-motorcycle, e-tricycle , e-wheelchair, e-golf cart, e-tourist vehicle etc . |
25 |
Protection Function | Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Teperature, Balance |
1 . Wide temperature range: Run well under different temperature environment conditions operation from :-20°C~+60°C ,
2 . Wide range power capacity available : we can custom battery per clients requirements
3 . Consistency: Low internal resistance ,Capacity, Voltage, platform time consistency is good ,
4 . Environment-friendly: Clean and green energy , Pollution-free, Doesn’t contain Mercury, No fire, No explosion, No leakage
5 . Compact size With light weight: the best power-to-weight radio which only 1/2 size volume and 1/3 of lead acid battery weight
6 . Powerful Performance : Strong current charge ability , Outstanding Discharge properties and Storage Capacity ,with powerful output which can maximize your electronic appliances performance
7 . low self-discharge rate: less than 3%monthly
8 . Long cycle life: Can extends its cycle life up to 800 times
9. No memory effect: Be charged & discharged at anytime as No memory effect and highly efficient charge and conveniently .
10 . High energy capacity density and Strong current charge and discharge capability Stable Performancce
All Vglory battery undertake laboratory testing as bellowing : this is very critical to ensure the good quality of battery .
A: low pressure test B : free fall test C : Thermal shock test D : Short-circuit test
E: Impact Test F: Crush Test G : Nail penetrating Test H: projectile Test
I : Electronic Salt-Spray Testing Machine J : Battery Vibration Testing Machine
K : Programmable Temp & Humi Testing Chamber
Production precedures under skillful performance :
Temperature & Humidity Test of single cell : Imitate the storage of battery (Under temperature (-20℃-150℃) and humidity (20%-98% R.H.) to test power performance
Formation Test of single cell : Capacity sort, charge, discharge and cycle life tests for single cell to ensure whole performances of single especially combined battery .
Transit Test : performance, as well as any accessories of battery pack
E-Mobility : e-bike, e-scooter, e-skateboard, e-motorcycle, e-tricycle/rickshaw, e-golf cart, e-forklift, e-tourist vehicle , cleanness car, tourist car(E-Tour Car),electric bus, electric wheelchairs, ETC .
How to take care of Lithium battery :
1 . Do not throw battery into water ,keep it away from water, salt, acidic , etc.
2 . Do not throw the battery into fire or heat the battery;
3 . Do not reverse the polarity of the battery pack for any reason.
4 . Forbid to connect the positive and negative terminal directly.
5 . Forbid to hammer to trample the battery;
6 . Do not directly solder the battery and pierce the battery with a nail or other sharp objects
7 . Do not disassemble the battery pack without technician’s guide.
8 . Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
9. Do not mix fresh batteries with used batteries.
10 . Should be stored in clean, dry and ventilating place .
11 . Do not connect the battery electrodes to an electrical outlet
11 . Please use 0.5C current to charge up 60% capacity after the battery placed 3 months , storage in cool conditions without direct sun light on the packs or box
We can customise the Battery pack per customers' requirements !
