Green power compact 48v 5kwh 5kw solar pv panel power battery storage

这里可以自定义设置

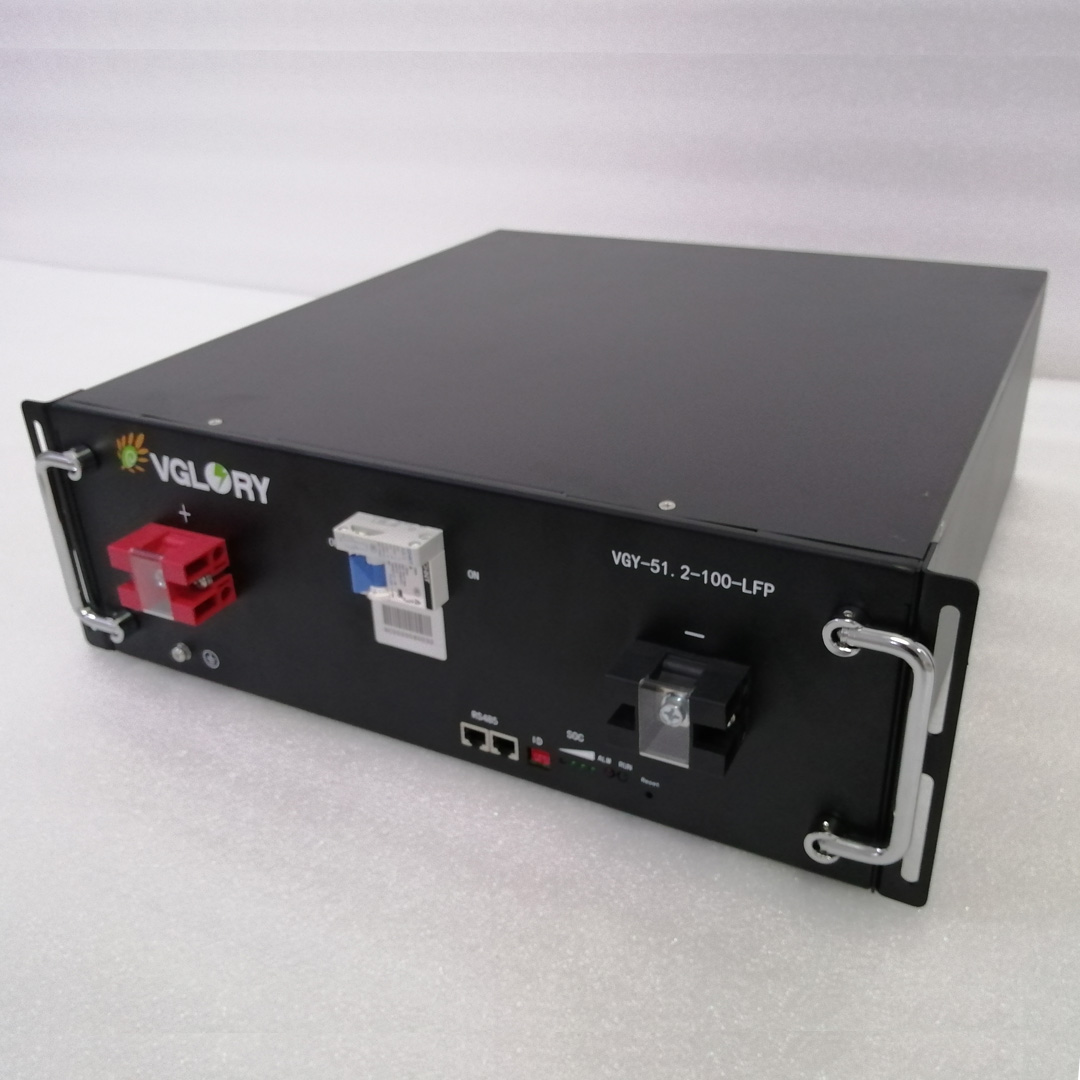

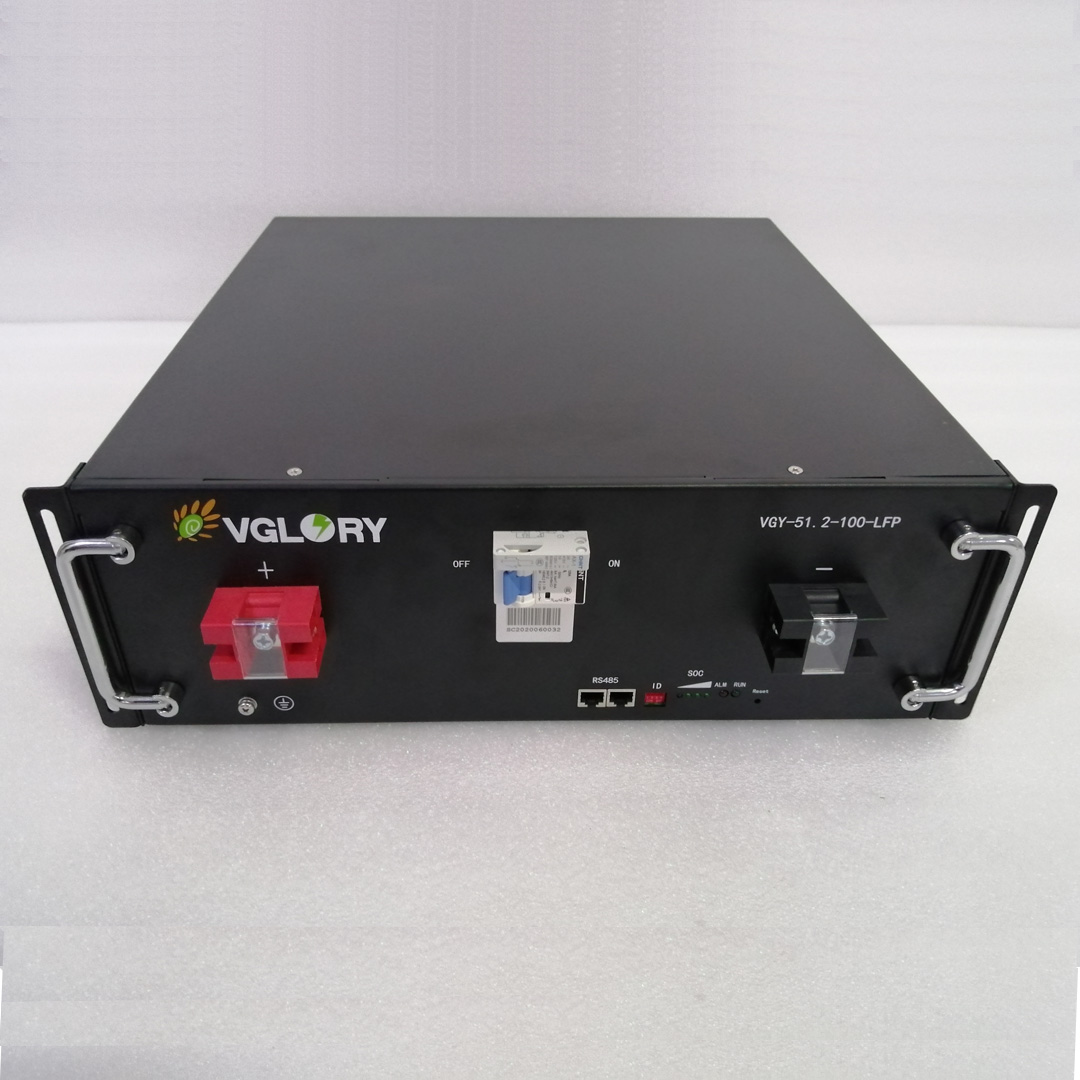

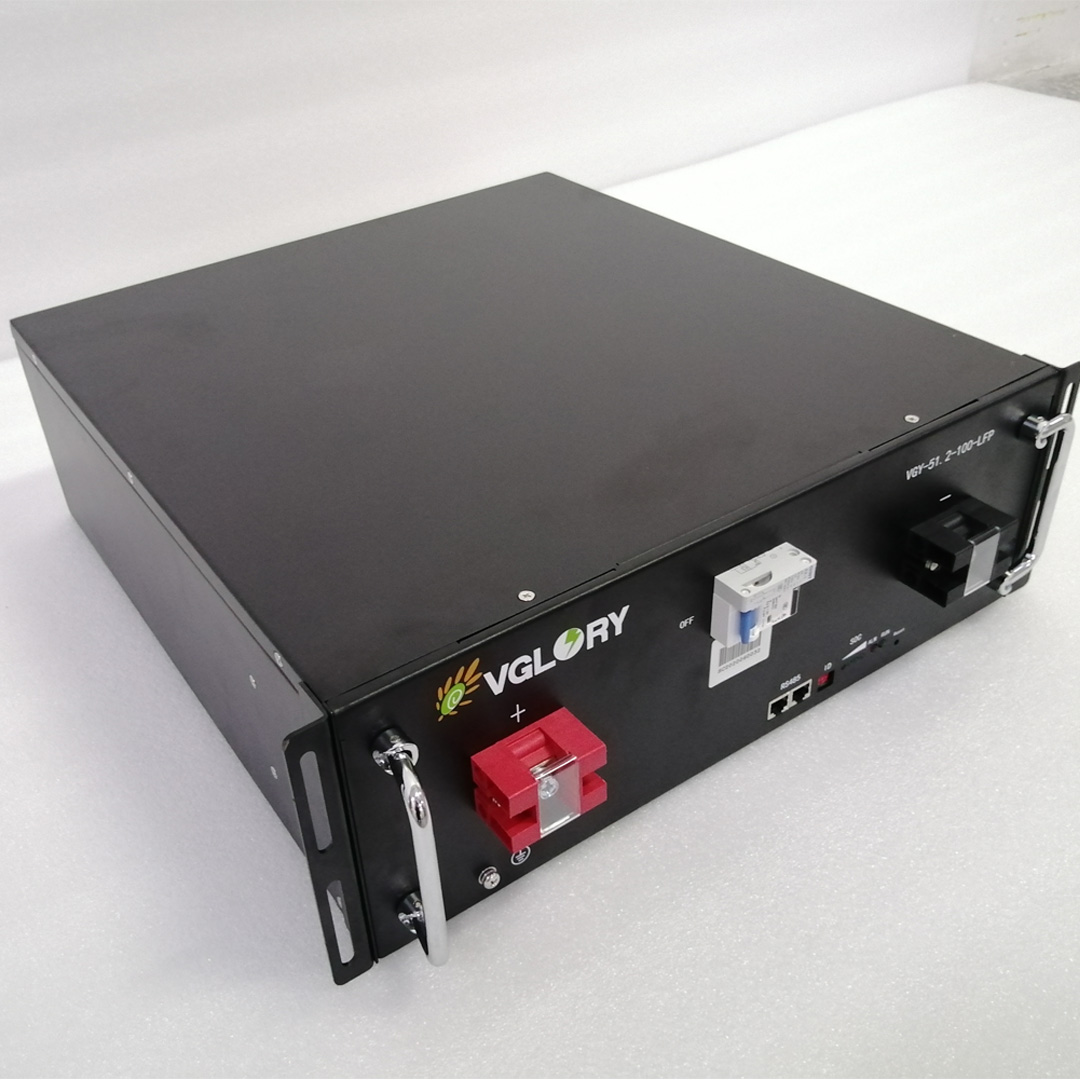

Green power compact 48v 5kwh 5kw solar pv panel power battery storage
B站不支持收货地址
B站不支持库存规格
Model
5kwh solar battery storage
MOQ
5
Payment
L/C, T/T, Western Union, MoneyGram
Place of Origin
Shenzhen China
Brand
VGLORY or OEM
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容

Product Parameters

That guarantee us to supply most competitive cells , battery pack and BMS solutions with advanced lithium technology .

24v 100ah lithium battery China factory wholesale lithium battery

Technical Data

Rated Voltage

solar lithium ion battery 48v

Rated Capacity

5kwh home energy storage battery

Chemistry

Lifepo4 battery cell

Continuous Discharge Current

0.5c~1c or According to customers' requirement

Weight

<50 kgs

Size

 custom

Working Temperature

Charge

-10°C ~ 45°C , 65±20%RH;

Discharge

-10°C ~65°C , 65±20%RH

Storage Temperature

Less than 1 month

-10°C ~ 45°C ,  45-75% R.H.

less than 3 months

-10°C ~ 35°C, 45-75% R.H.

Standard Discharge

Constant Current 0.2C/End Voltage 2.5V cell

Cycle Life

>3000 times

Retention of charge(store in one month)

above 95%

Charge & Discharge

Way of charge

CC/CV(Constant Current / Constant Voltage)

Standard Charge Current

≤ 0.2c or custom

Over Charge cut-off voltage

3.7±0.025V/Cell(optional)

Continuous Discharge Current

≤ 0.5c or custom

Dischargecut-off voltage

2.65 ±0.025V/Cell(optional)

Protection Function

Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Teperature, Balance

Product Description

Vglory battery manufacturer offers high level safety battery through assembled with high quality A grade cell. which are good replacement of lead-acid batteries  and good compatible in all respects with those of lead battery .



Vglory battery factory professional in design the energy storage battery from smaller 2 kWh 3 kWh 5 kWh 10 kWh 12 kWh 20 kWh 50 kWh 100 kWh etc ,which good application for home energy storage ,  our professional engineer tailored with excellent battery management system (BMS) basing specific requirement . A well-designed battery management system can help maximize lifespan .

这里可以自定义设置

Product Characteristics

Place of Origin

 Guangdong, China

Brand Name

 Vglory or OEM

Model Number

 BLP24V100AH

Capacity

 24v100ah

Battery type

 solar power battery

Product name

 best battery for solar system

Material

 Li-Ion cell

Warranty

 2 Year

Charge Current

 0.2C

Discharge Current

 0.5C

Charge Cut-off Voltage

 14.6v

Discharge Cut-off Voltage

 10.0v

Product Details

We have professional cell engineer and mechanical engineer who can design the ideal battery pack according our customer’s

mechanical and electric requirement balanced with suitable cost structure

这里可以自定义设置

Our Lithium Battery Features

Battery cells capacity sorting

Automatic cell grading sorting ensure the precision of cell balance as ensure the best capacity and quality of battery pack

Battery cells IR & multi testing

Undertaking internal resistance testing ensure the best consistency of best quality battery pack , as ensure best power performance and prolong lifespan of battery pack

Automatic Welding machine

Which can avoid insufficient welding as ensure the high quality battery pack assembling . which can improve production efficiency mostly

Comprehensive Testing

Using automatic test equipment , comprehensive test of large batteries , cycles , IR, consistency , accurate data , perfect curve , ensure 100% qualified

Automatic sticker machine

The processing of assembly the barcode of batteries can record the capacity , voltage , power , production time , and production batch for easier trace in the future

Package design

Our professional engineer will design the strong package for lithium battery which ensure the safety transportation of lithium battery , which would avoid severe vibrating, impacting , extrusion , and direct light and rain

Component Advantage

High quality Standard of Vglory Battery

Our high quality Lithium battery Features

1: Quick response: quick reply within 24 hours ;
3: Good quality: We will arrange production of your order as soon as possible , Provide with best quality lithium battery pack !
4: Fast delivery: once order confirmed , we will make production arrangement and get ready asap ! For sample order, we will ship in around 7 days, for bulk order , we can get shipment ready approx. 15 days
5: QC checking: all battery pack need pass 100% quality test before shipment .
6: Professional Logistic team: Our professional logistic team which are rich experiences in sourcing the best channel & handling shipments for clients ,
7: Tracking Shipments:  We will track the shipping status timely ensure our buyers can receive goods in time and safely.
8: Provide competitive factory lower price , super high quality lithium battery pack !
9: provide 3 years warranty as ensure the best quality of battery pack !

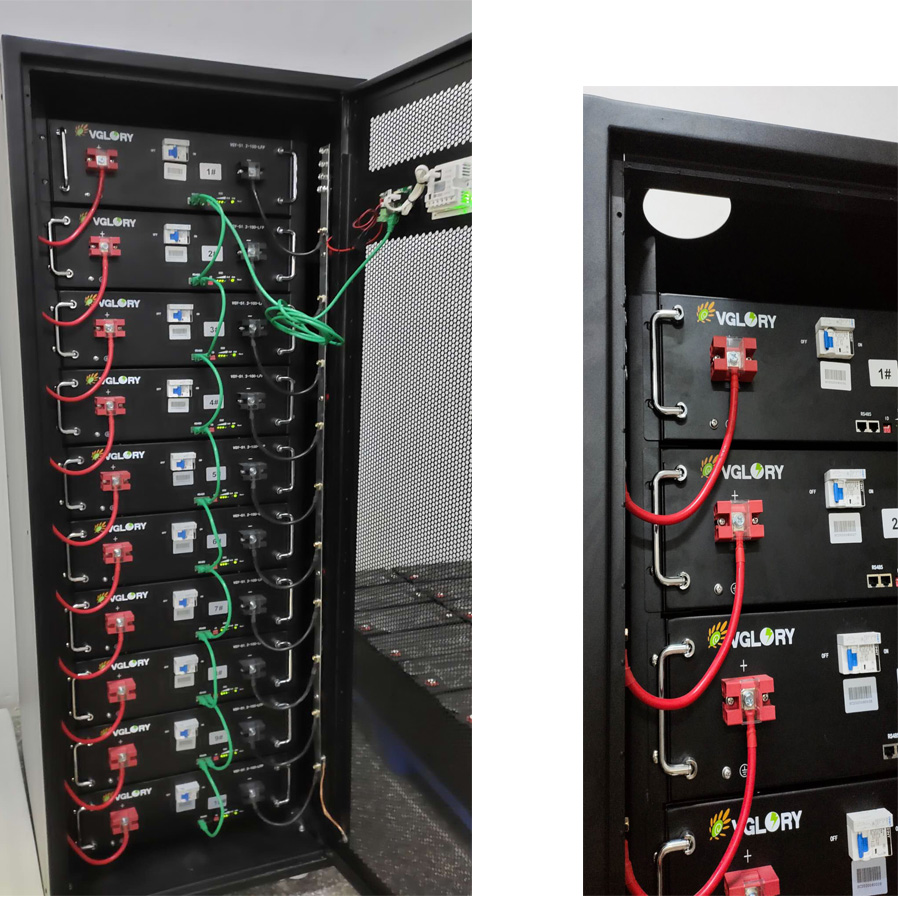

Product Application

Energy Storage Systems: (solar energy power system , Solar LED light, Solar storage battery , energy storage system,

camping light , solar emergency light,  City Grid (On / Off) , Industrial , Community and Home
