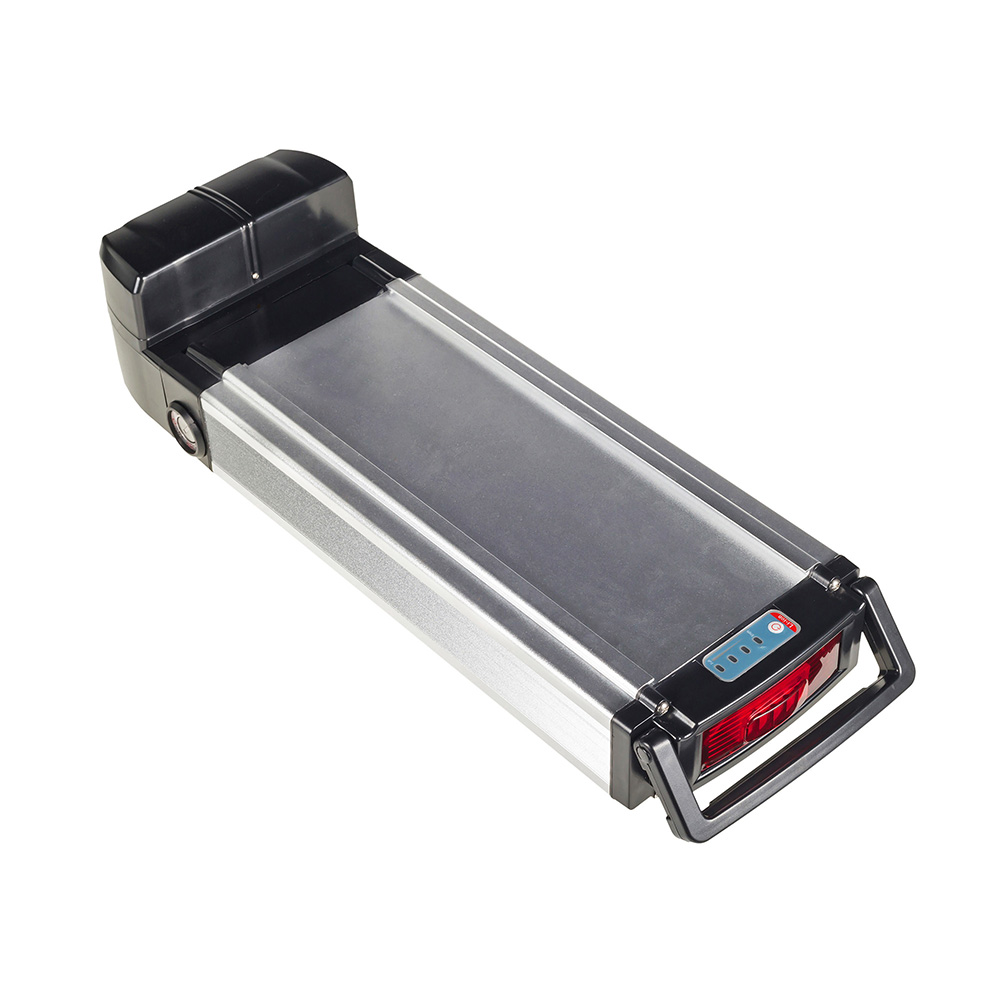

Economically and conveniently 20ah36v ebike battery 24 volt battery for electric bike
The li-ion electric bike battery is more safe and reliable than the lead acid one. It does not explode or burn when bump, heavy stress, needle pricking, short circuit, overcharge and overheat. Environment-friendly: Accredited with CE, without any hazardous and noxious substances , with most long cycle life,Small in volume with light weight.
A key advantage of using Li-ion chemistry is the high open circuit voltage that can be obtained in comparison to aqueous batt
eries (such as lead acid, nickel metal hydride and nickel cadmium).
It is Perfect apply used in fields such as E-mobility (e-bike, e-scooter, e-skateboard, e-motorcycle, etc ...
| Specification of 48V13.6Ah Li-ion Ebike Battery | ||
| No. | Items | Specs |
| 01 | Model | Economically and conveniently 20ah36v ebike battery 24 volt battery for electric bike |
| 02 | Chemistry | LiNiCoMnO2 |
| 03 | Nominal Voltage | 48V |
| 04 | Rated Capacity | 13.6Ah |
| 05 | Battery Cell | 18650 FL 3.7V |
| 06 | Battery size | 380*160*95mm |
| 07 | Battery Weight | 3.7KG |
| 08 | Max Constant Discharge Current | 25A |
| 09 | Standard Charge Current | 0.2C |
| 10 | Peak current | 70A |
| 11 | Charge voltage | 36V |
| 12 | Overcharge cut off voltage | 42V |
| 13 | Discharge cut off voltage | 30V |
| 14 | Standard Discharge | Constant Current 0.2C/End Voltage 30V |
| 15 | Cell Qty | 78pcs |
| 16 | Configuration | 13s6p |
| 17 | Way of Charge | CC/CV |
| 18 | Cycle Life | More than 800 times |
| 19 | Charge Temperature | 0~45℃ 60±25%R.H. |
| 20 | Discharge Temperature | -20~60°C 60±25%R.H. |
| 21 | Storage temperature | -0~35°C 45-75% R.H. |
| 22 | Charging Time (Std.) | 4~5hours |
| 23 | Charging Time (Max.) | 2~3hours |
| 24 | Application for | Electric Bike Battery |
25
| Protection Function | Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Teperature, Balance |
Advantage Features of Lithium Ion Ebike Battery :
1 . High level of safety : catch no fire and cause no explosion in breaking experiment, with acupuncture, smash, drop, and so on
2 . Wide temperature range: Run well under different temperature environment conditions ,Can be used under extreme temperature
3 . Consistency: Low internal resistance ,Capacity, Voltage, platform time consistency is good ,
4 . Environment-friendly: Clean and green energy , Pollution-free, Doesn’t contain Mercury, No fire, No explosion, No leakage
5 . Compact size With light weight: the best power-to-weight radio : 1/2 the volume and 1/3 of lead acid battery weight
6 . Powerful Performance : as the high voltage and light weight , Motors acceleration speed performance , with good Strong current charge and discharge capability
7 . low self-discharge rate: monthly less than 3%
8 . Long cycle life: more than 800 charge/discharge cycles
9. No memory effect: Be charged & discharged at anytime as No memory effect and highly efficient charge and conveniently .
10 . High energy capacity density and Stable Discharge Voltage
Production precedures under skillful performance :
Material Mixing :
Our raw material take the way of vacuum high-speed mixing to achieve the effect of viscosity stability through disperse and symmetrical stirring of slurry materials .
Coating : The density of the coating can be controlled within 3mg . the thickness of the roller can be controlled within 3mu.
Capacity Separating :
Multi-function intelligent Sub-cabinet can automatically alarm the unqualified products to ensure that the product pass rate can reach 100%
Battery cells sorting :
Using Imported control IC intelligent sorting machine , filter the voltage , Automatic sorting ,ensure Cell's consistency , discharge more uniform , to maintain a stronger endurance and life .
Aging Testing :
Spraying the Code :
The processing of assembly and spraying the code of batteries can record the capacity , voltage , power , production time , and production batch of each cell for easier trace in the future .
E-Mobility : electric bike, electric scooter, e-skateboard, e-motorcycle, e-tricycle/rickshaw, e-golf cart, e-forklift, e-tourist vehicle , electric vehicle , cleanness car, E-tour car ,electric bus, electric wheelchairs, ETC .
Battery Precaution and Safety Instructions :
1 . Do not throw battery into water ,keep it away from water, salt, acidic , etc.
2 . Do not throw the battery into fire or heat the battery;
3 . Do not reverse the polarity of the battery pack for any reason.
4 . Forbid to connect the positive and negative terminal directly.
5 . Shocks, high temperature, or contacts of sharp edge components should not be allowed in battery pack assembling process .
6 . Do not directly solder the battery and pierce the battery with a nail or other sharp objects
7 . Remove the battery from the device and separated, avoid metal contact with the battery, causing short-circuit or damage to the phenomenon.
8 . Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
9. If long-term not in use , use battery charger to charge half full state ,
10 . Should be stored in clean, dry and ventilating place .
11 . Battery end of life should be immediately removed from the equipment, Please properly handle security of spent batteries ,
12 . Please use 0.5C current to charge up 60% capacity after the battery placed 3 months , storage in cool conditions without direct sun light on the packs or box
13 . In use or during storage , if found the battery has been high fever, leakage, odor, distortion and other anomalies, please immediately stop using and stay away from the battery .
We can customise the Battery pack per customers' requirements !
Vglory battery factory have been in this field for many years which is established in year 2010 and have rich experiences in R&D
