Professional Manufacturer of One Stop Solutions Provider for all kind of lithium battery 10 years more .

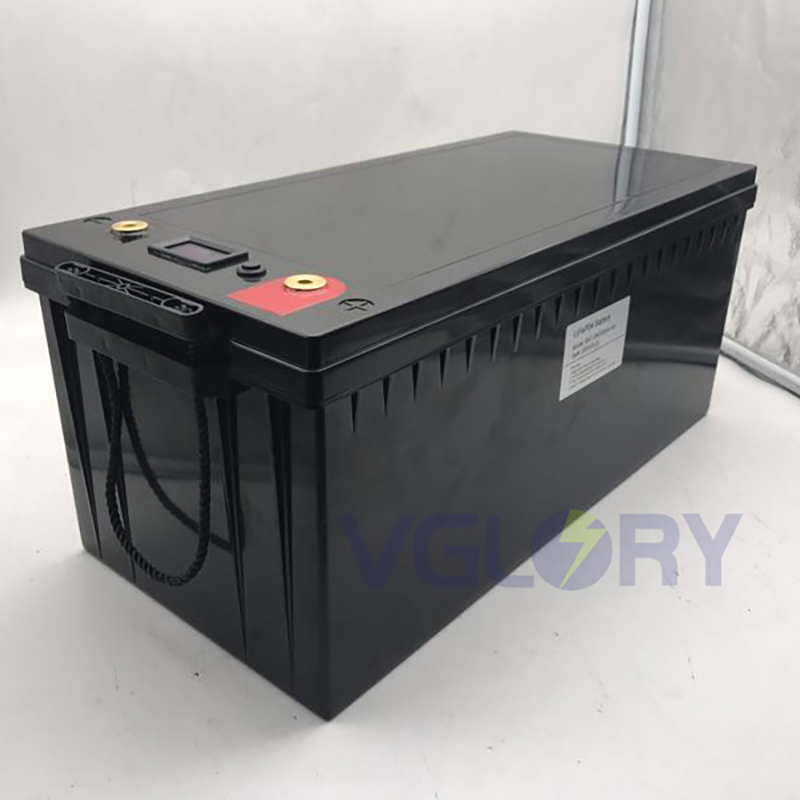

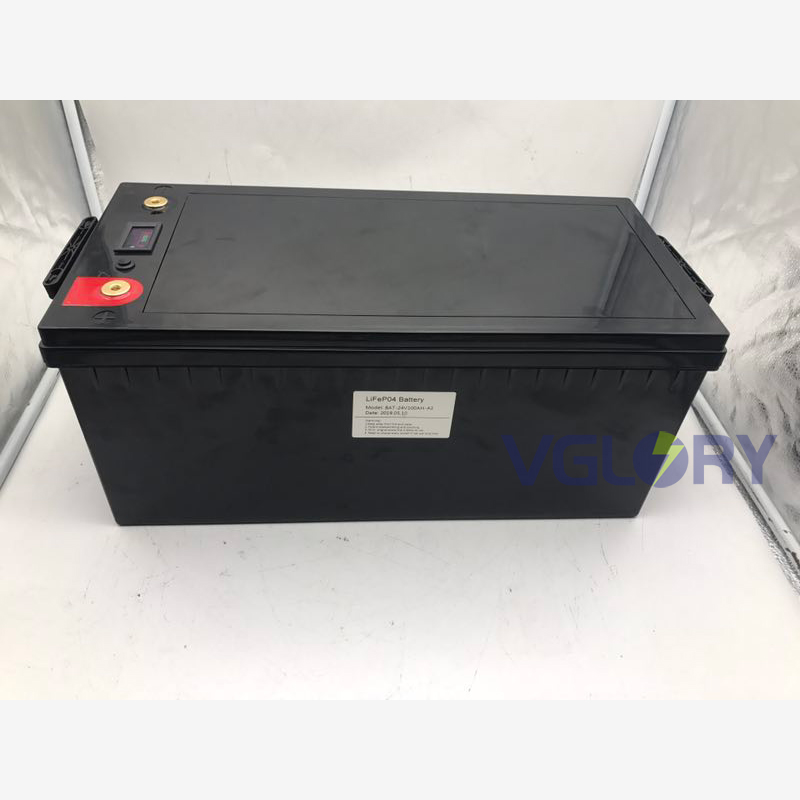

| High Capacity Rechargeable 12.8V 12v 130ah LiFePO4 battery Deep Cycle | ||
| Weight | 16.3kg | |
| Size | custom | |
| Working Temperature | Charge | -20°C ~ 45°C , 65±20%RH; |
| Discharge | -20°C ~65°C , 65±20%RH | |
| Storage Temperature | Less than 1 month | -20°C ~ 45°C |
| less than 3 months | -20°C ~ 35°C | |
| Retention of charge(store in one month) | above 95% | |
| 2. Technical Data | ||
| Rated Voltage | 12.8V | |
| Rated Capacity | 130Ah | |
| Inner Resistance | below 50 mΩ | |
| Charge & Discharge | Way of charge | CC/CV(Constant Current / Constant Voltage) |
| Standard Charge Current | 0.2c (Adjustable) | |
| Max Charge Current | 1c or customized | |
| Over Charge cut-off voltage | 14.6v± 0.025V(optional) | |
| Continuous Discharge Current | 0.5c (Adjustable) | |
| Discharge cut-off voltage | 10v ± 0.025V(optional) | |
| Peak Discharge Current | 3c or customized | |
| Cell Over Charge Protection Voltage | 3.65v ± 0.025V(optional) | |
| Cell Over discharge Protection Voltage | 2.5v ± 0.025V(optional) | |
Vglory battery manufacture offers high level safety battery through aseembled with high quality A grade cell .
Vglory wide range battery has been designed to replace lead-acid batteries , by offering a higher energy density for an equivalent weight and size.
Vglory lithium battery with advantages such : the high reliability, lower cost , long lifespan and no pollution operation ,which are good replacing lead-acid batteries in a wide range of applications,
The Stable BMS system protect well the battery all the time which ensure the perfect performance.
E-Mobility : e-bike, e-scooter, e-skateboard, e-motorcycle, e-tricycle/rickshaw, e-golf cart, e-forklift, e-tourist vehicle , cleanness car, tourist car(E-Tour Car),electric bus, electric wheelchairs, ETC .
1 . Should be stored in clean, dry and ventilating place .
2 . Do not throw the battery into fire or heat the battery;
3 . Do not reverse the polarity of the battery pack for any reason.
4 . Forbid to connect the positive and negative terminal directly.
5 . Forbid to hammer to trample the battery;
6 . Do not directly solder the battery and pierce the battery with a nail or other sharp objects
7 . Do not disassemble the battery pack without technician’s guide.
8 . Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
9. Do not mix fresh batteries with used batteries.
Vglory battery company is professional in producing , researching & marketing in Lithium battery , with professional engineer team with more than 10years experiences ,
Our lithium battery widely apply for Electric bike , Electric Motorcycle , Medical Device , power tools , solar sytem and OEM service ,All batteries are manufacturing stictly accordingly to ISO9001-2008 , equipped with advanced equipments and testing machine; contact us , our high quality and competitive price will supprised you .
Vglory battery factory have been in this field for many years which is established in year 2010 and have rich experiences in R&D
