Professional Manufacturer of One Stop Solutions Provider for all kind of lithium battery 10 years more .

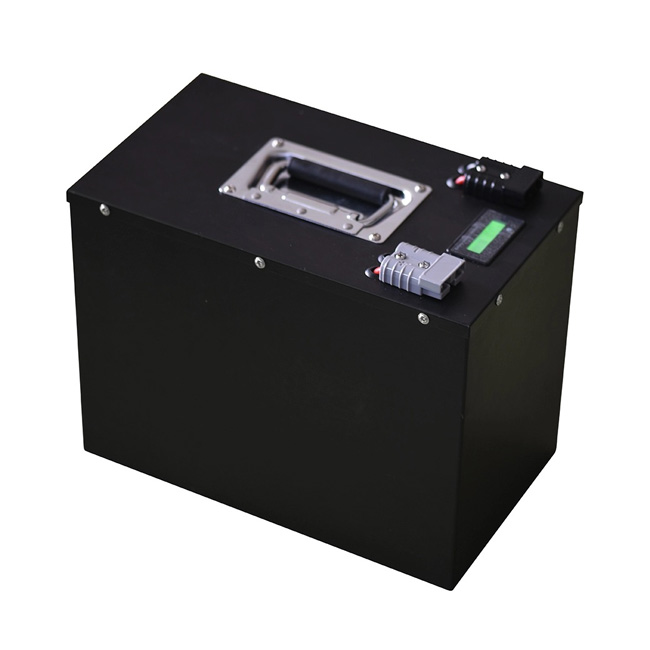

Model: BLP12V100Ah
MOQ: 5pcs
Payment: T/T , Western Union , Paypal
Delivery time: 10days ~ 15days
Start Port: Shenzhen
Certification: CE , ROHS , MSDS , UN38.3
12v 100ah LiFePO4 battery Deep Cycle | ||
Weight | 12.8kg | |
Size | 323*173*213mm orcustom | |
Working Temperature | Charge | -20°C~ 45°C , 65±20%RH; |
Discharge | -20°C ~65°C , 65±20%RH | |
Storage Temperature | Less than 1 month | -20°C~ 45°C |
less than 3 months | -20°C~ 35°C | |
Retention of charge(store in one month) | above 95% | |
2. Technical Data | ||
Rated Voltage | 12.8V | |
Rated Capacity | 100Ah | |
Inner Resistance | below 50 mΩ | |
Charge & Discharge | Way of charge | CC/CV(Constant Current / Constant Voltage) |
Standard Charge Current | 20A~50A or custom per requirement | |
Max Charge Current | 80A | |
Over Charge cut-off voltage | 14.6v±0.025V(optional) | |
Continuous Discharge Current | ≤ 70A or custom | |
Dischargecut-off voltage | 10v ±0.025V(optional) | |
Peak Discharge Current | ≤ 150A or customized | |
Cell Over Charge Protection Voltage | 3.65v ±0.025V(optional) | |
Cell Over discharge Protection Voltage | 2.5v ±0.025V(optional) | |
Product Description
Vglory battery manufacturer offers high level safety battery through assembled with high quality A grade cell . which are good replacement of lead-acid batteries and good compatible in all respects with those of lead battery . the charging system can be kept the same and no additional accessories are required to perform the replacement.
Widely using in solar battery storage applications: such solar street light , solar power system , solar garden lights , solar street light , solar/wind system, telecom/base station, uninterruptible power supply/UPS/backup system etc.
Vglory lithium battery is more safety and reliable than the lead acid one . It does not explode or burn when bump, heavy stress, needle pricking.
Product Characteristics
Place of Origin | Guangdong, China |
Brand Name | Vglory or OEM |
Model Number | BLP12V100AH |
Usage | solar battery storage |
Maintenance Type | Free |
Sealed Type | Sealed |
Weight | 13kgs |
Product name | Lifepo4 Lithium battery 12v 100ah 200ah 300ah Storage Batteries |
Size | Customized |
Capacity | 12v100ah |
Battery type | solar battery for home use |
Certificated | CE , ROHS , UN38.3 , MSDS |
Material | Lifepo4 battery cell |
Warranty | 2 Year |
Charge Current | 0.2C |
Discharge Current | 0.5C |
Environment-friendly
Clean and Green energy poses no pollution on our environment . Doesn’t contain Mercury, No fire, No explosion, No leakage
Compacted size and super light weight
Light weight , small size and high power performance ,only 1/3 weight of lead acid battery
Excellent power performance
Strong current charge and discharge capability reached IEC standard , fast charging characteristic
High energy capacity density
energy density per volume are more higher than lead acid battery
Low self-discharge
Minimal self-discharge, only less than 3% monthly
Low internal resistance
which ensure the best performance of lithium battery pack
No memory effect
Be charged & discharged at anytime because of non-memory characteristic
Vglory battery factory have been in this field for many years which is established in year 2010 and have rich experiences in R&D
